Removing Horn

Information

Shown on the left side.

Right side same as left side.

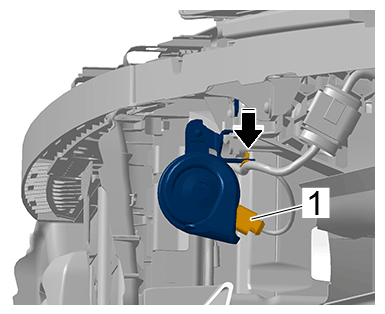

1. Release and unplug electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for horn

2. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for horn

3. Unclip wire harness -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Clip on wire harness for horn

4. Remove horn -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Horn
