Removing Gateway Control Unit

Removing gateway control unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new part from ESD (electrostatic discharge) protective packaging until shortly before installation and only at the installation position.
• Do not touch electric pins and plug contacts.

1. Fold the carpet forward.
2. Remove gateway control unit -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

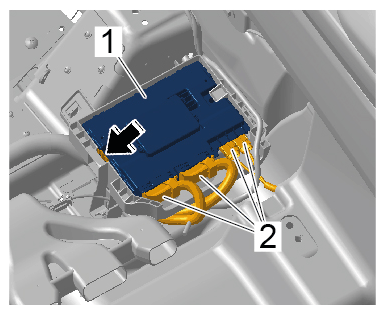

   Gateway control unit

   1. 2.1  Release and unplug electric plug connections -2-  .
   2. 2.2  Unclip gateway control unit -1-  -Arrow- and remove it.
