Preliminary Work

Information

Before removing the gateway control unit, the Porsche Vehicle Tracking System (PVTS) must be set to Workshop mode.

Workshop mode can only be set by the customer  using Car Connect.

An alarm must not be active in the Porsche Vehicle Tracking System (PVTS).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

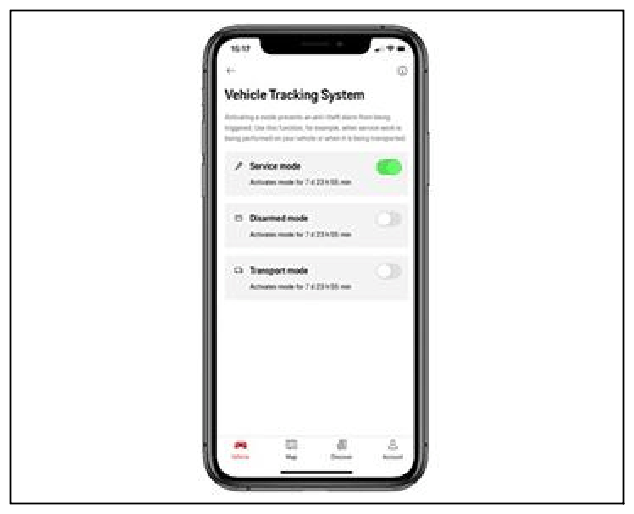

Car Connect

Information

Before removing the external communication control unit, the Porsche Vehicle Tracking System (PVTS) must be set to Vehicle Servicing mode.

Vehicle Servicing mode can only be set by the customer  using Car Connect.

If the Gateway  control unit is replaced, continue with Step  1.

If the Gateway  control unit is not replaced, continue with Step  2.

1. If the Gateway  control unit is replaced, the old gateway control unit must be de-registered before installing the new gateway control unit in markets with Porsche Connect.

   > 903555 REPLACING GATEWAY CONTROL UNIT

2. Loosen battery ground strap.

   > 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY

3. Remove left front seat.

   > 720119 REMOVING AND INSTALLING FRONT SEAT - information on "Removing"

4. Detach side trim panel on lower part of centre console at the left from the front until the joint in the carpet is accessible.

   > 68141903 REMOVING AND INSTALLING SIDE TRIM PANEL ON LOWER PART OF CENTRE CONSOLE - information on "Removing"
