Removing Gateway Control Unit Battery

  1. Fold the carpet forward until the gateway control unit is accessible.
  2. Release the battery cover -1-  on gateway control unit -Arrows-  and remove.

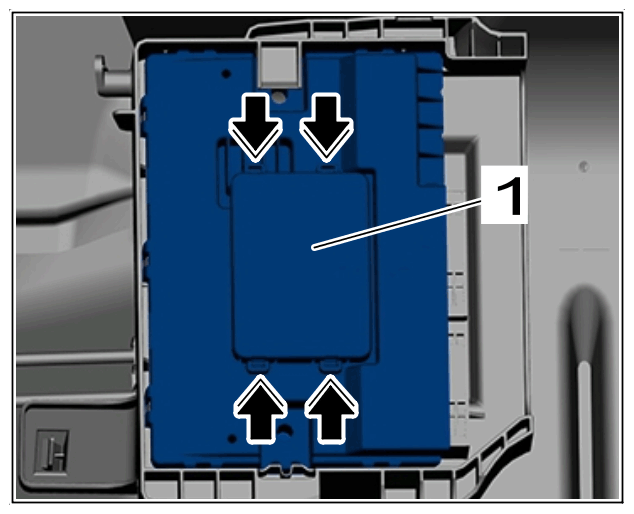

    G15230819Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Gateway control unit battery cover

  3. Remove the battery.

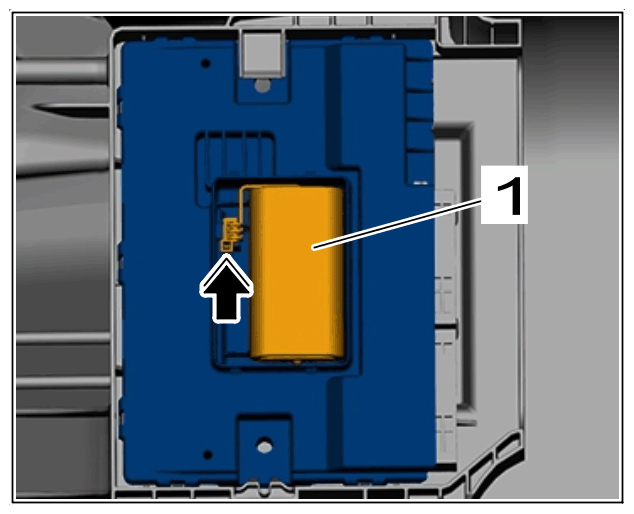

    G15230820Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Gateway control unit battery

    1. 3.1  Release electric plug connection -Arrow-  and pull it off.
    2. 3.2  Remove battery -1-  .
