Removing Instrument Cluster

  1. Unscrew fastening screws -1-  .

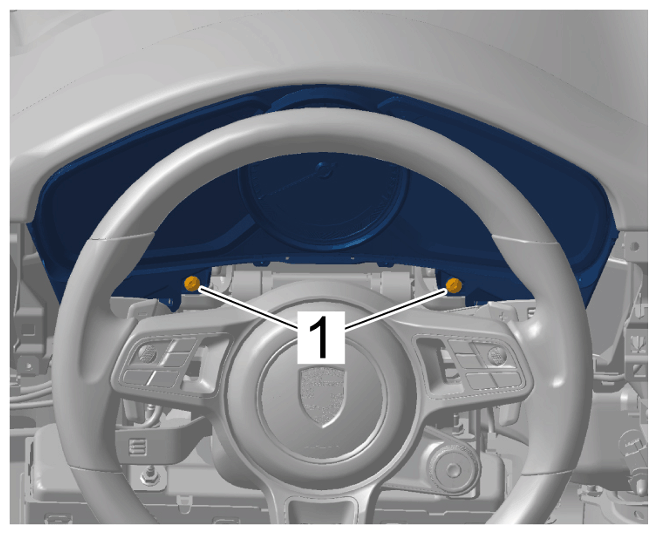

    G15230813Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

  2. During removal and installation, protect the "glass surface" of the instrument cluster from damage using cotton cloths for example.
  3. Loosen instrument cluster -2-  .

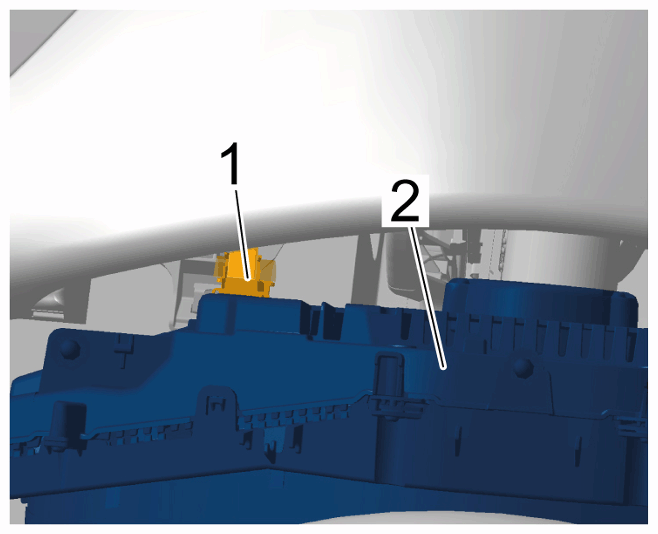

    G15230814Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Instrument cluster

    1. 3.1  Pull the instrument cluster -2-  down first and then out towards the steering wheel.
    2. 3.2  Release and unplug electric plug connection -1-  .
  4. Disconnect electric line -1-  .

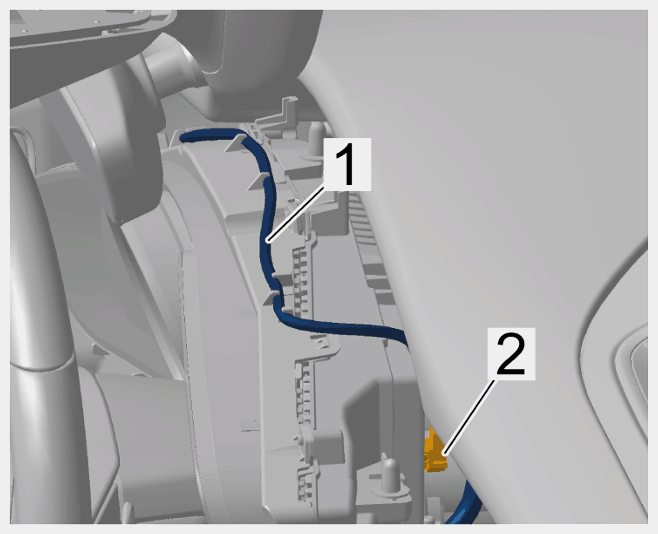

    G15230815Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

    1. 4.1  Disengage electric line -1-  from the guides.
    2. 4.2  Release and unplug electric plug connection -2-  .
  5. Guide out the instrument cluster between the instrument panel and steering wheel.
