Removing Compass

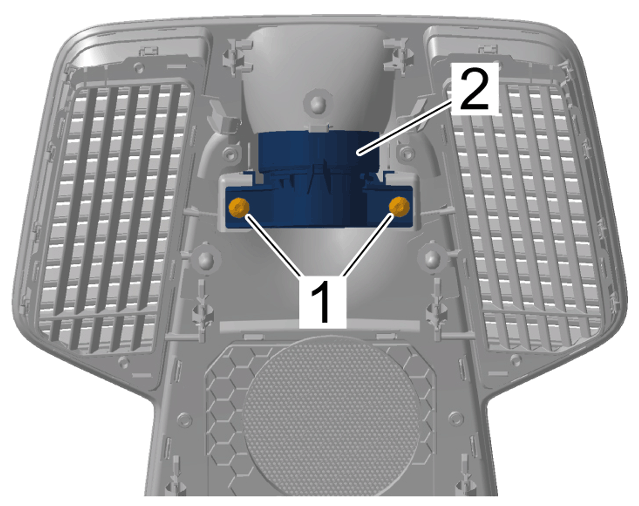

  1. Unscrew fastening screws -1-  from compass -2-  .
    G15230806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

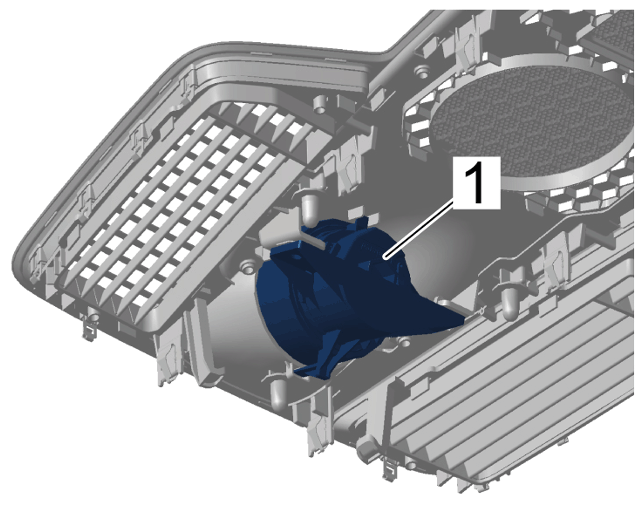

  2. Pull compass -1-  out of trim panel for (centre) loudspeaker.
G15230807Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Compass
