Removing Dashboard Insert

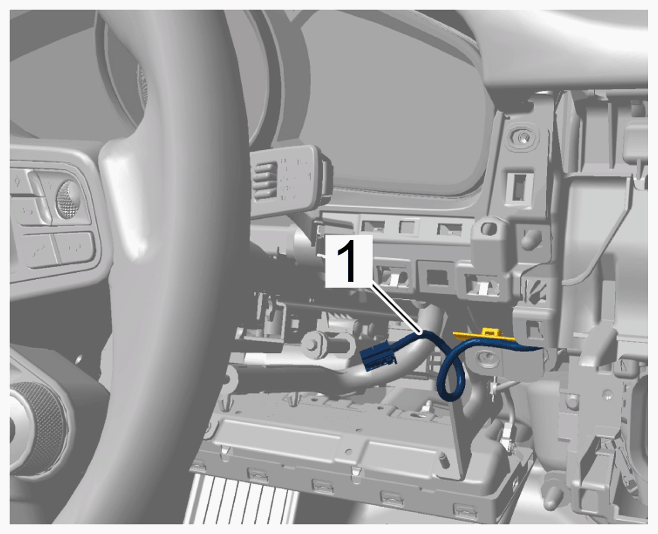

1. Unclip electric wire harness -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness

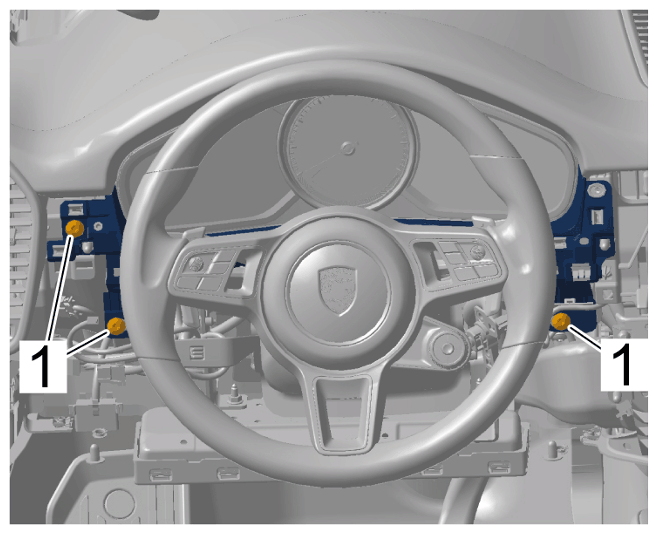

2. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

   Information

   The dashboard inset and steering column casing (upper part) are integrated in one component and can only be removed together.

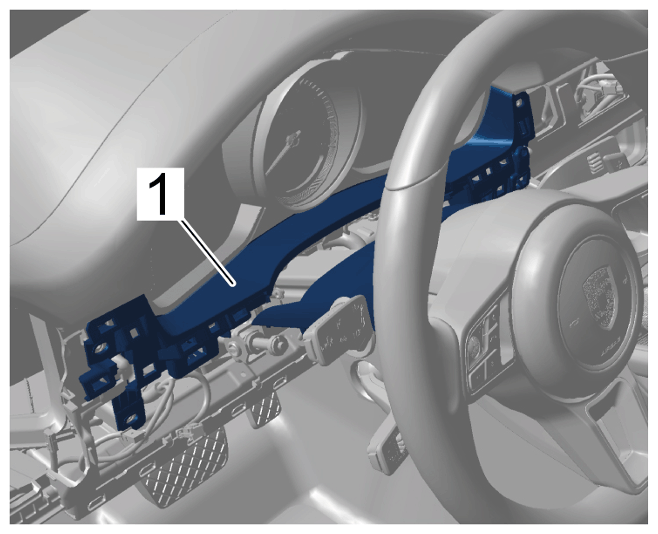

3. Unclip dashboard inset -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Dashboard inset
