Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing auxiliary headlights to front apron Item 4 Tightening torque 2.5 Nm (1.75 ftlb.)

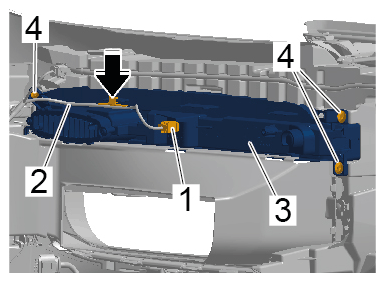

G15231325Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Auxiliary headlights
