Removing Auxiliary Headlight

Information

The number of screws, clips, plug connections, holders and trim panels can vary depending on equipment.

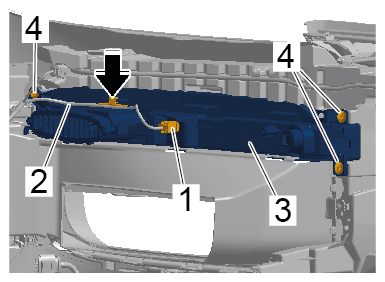

1. Release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

2. Unclip electric wire harness -2-  from auxiliary headlight -3-Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness

3. Remove screws -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws

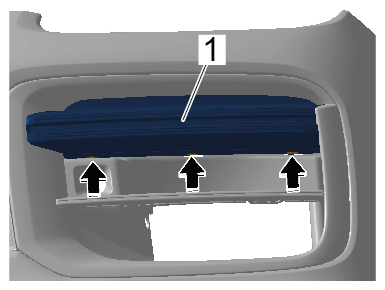

4. Unclip side air guide -arrows-  from auxiliary headlight -1-  and remove auxiliary headlight -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side air guide
