Removing Additional Brake Light

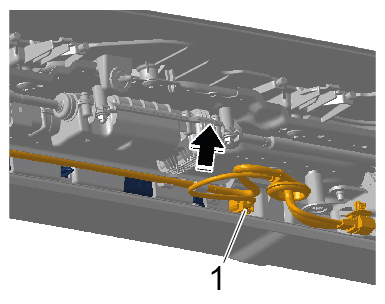

  1. Release and disconnect electric plug connection -1-  and unclip wire harness from rear spoiler -Arrow-  .
    G15231323Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

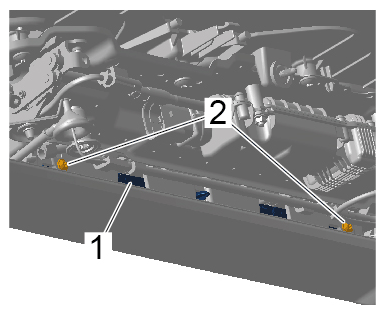

  2. Unscrew fastening screws -2-  and remove additional brake light -1-  .
G15231324Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Additional brake light
