94 Lights, Lamps, Switches Exterior -- 9YA - Cayenne (9YA)
>>
WM, 945819 Removing And Installing Light Bulb Control Unit
>>
Technical Values
Technical Values
Location
Description
Type
Basic value
Tolerance 1
Tolerance 2

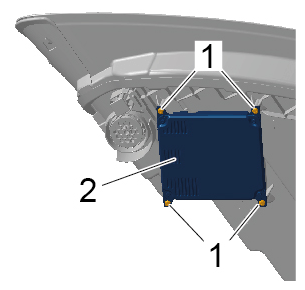

Light bulb control unit to headlight
Item 1
Tightening torque
1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fastening screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
