Removing Light Bulb Control Unit

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work  .
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation  .
• Do not touch electric pins and plug contacts  .

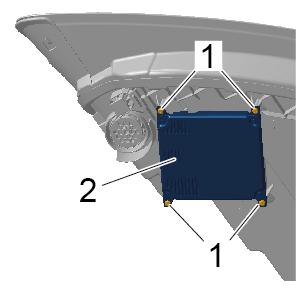

1. Unscrew fastening screws -1-  and loosen light bulb control unit -2-  until the electric plug connection is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

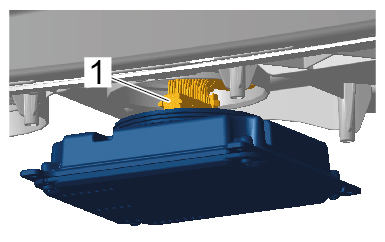

2. Release and disconnect electric plug connection -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Light bulb control unit

3. Remove light bulb control unit.
