Home >> Porsche >> 2019 >> Cayenne Base >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> 94 Lights, Lamps, Switches Exterior -- 9YA - Cayenne (9YA) >> WM, 945719 Removing And Installing Control Unit For Light Adjustment >> Technical Values

Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening screws securing light adjustment control unit to headlight Item 1 Tightening torque 1.6 Nm (1 ftlb.)

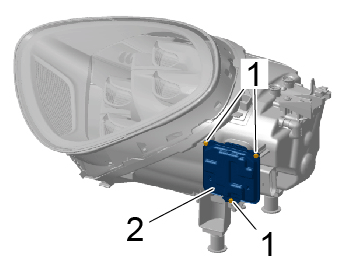

G15231311Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
