Removing Brake Light Switch

Information

The brake light switch is located on the brake master cylinder.

Information

Do not drain brake fluid. The brake light switch is inductive.

  1. Release and unplug electric plug connection -1-  .
    G15231290Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

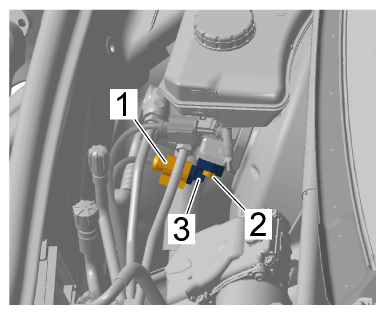

  2. Unscrew fastening screw -2-  and remove brake light switch -3-  .
G15231291Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake light switch
