Removing Tail Light

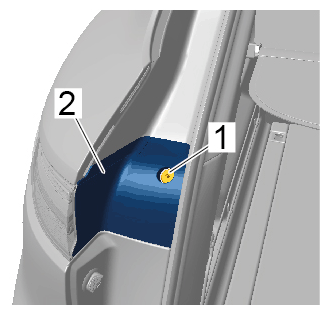

1. Unclip tail light trim panel -2-  using an assembly wedge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tail light trim panel

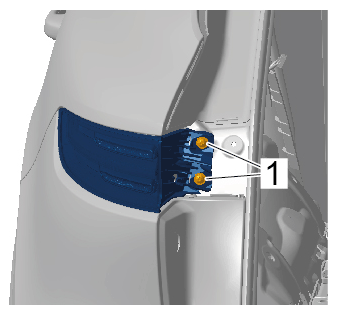

2. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

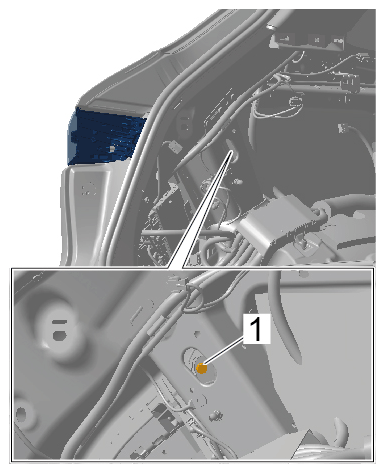

3. Unscrew fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw

4. Remove tail light -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tail light

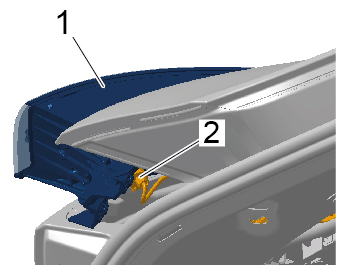

1. 4.1  Loosen tail light -1-  until electric plug connection -2-  is accessible.
2. 4.2  Release and unplug electric plug connection -2-  .
3. 4.3  Remove tail light -1-  .
