Removing Tail Light (Rear Lid)

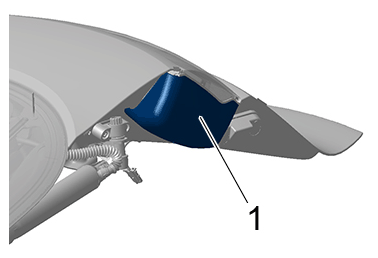

1. Unclip cover -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

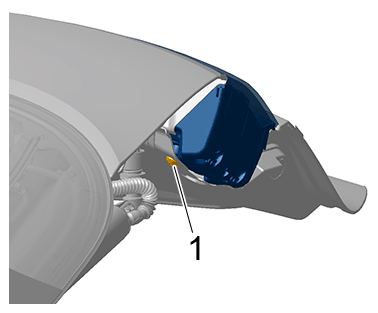

2. Unscrew fastening screw -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screw

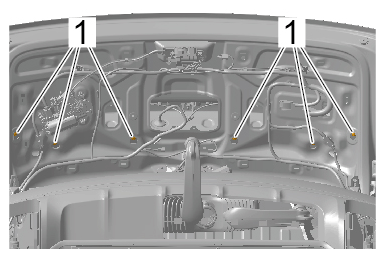

3. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

4. Remove tail light (in rear lid) -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tail light (in rear lid)

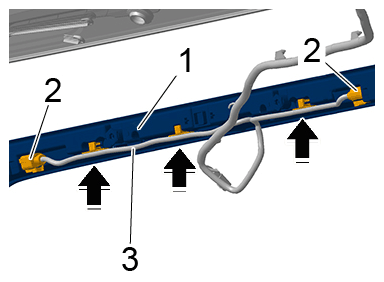

1. 4.1  Loosen tail light (in rear lid) -1-  until the electric plug connections -2-  are accessible.
2. 4.2  Release and disconnect electric plug connections -2-  on tail light (in rear lid) -1-  .
3. 4.3  Unclip electric wire harness -3-  from tail light (rear lid) -1-Arrows-  .
4. 4.4  Remove tail light (in rear lid) -1-  .
