Removing Number Plate Light

  1. Remove number plate light.
    1. 1.1  Release number plate light -1-  (-arrow A-  ) and remove it -arrow B-  until the electric plug connection is accessible.

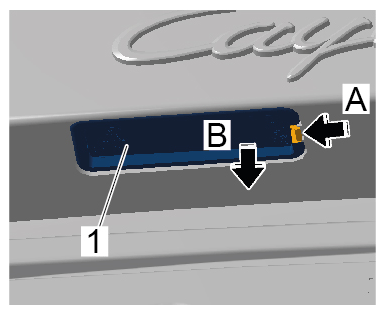

      G15231269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Number plate light

    2. 1.2  Release electric plug connection from number plate light -1-  (-arrow A-  ) and disconnect it -arrow B-  .

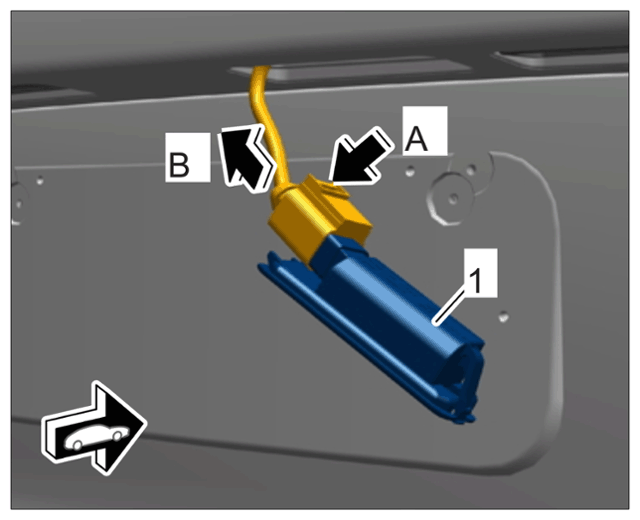

      G15231270Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connection
