Removing Headlights

1. Unscrew fastening screws on headlight -1-  through the wheel housing liner.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

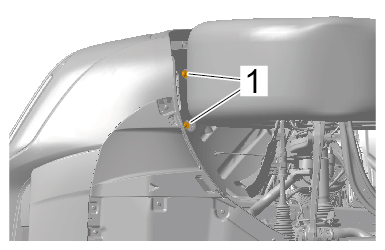

   Fastening screws on headlight

   Information

   Mask or cover the front apron in the headlight area to prevent damage.

2. Pull out headlight -1-  until the electric plug connection -2-  is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

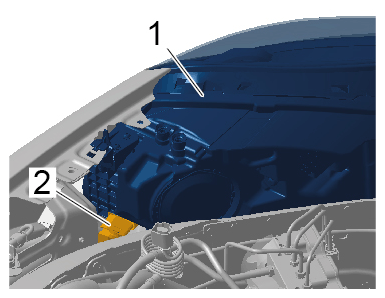

   Headlight

3. Release and unplug electric plug connection -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

4. Carefully remove headlight -1-  by pulling it forward.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headlight
