Installing Headlights

Information

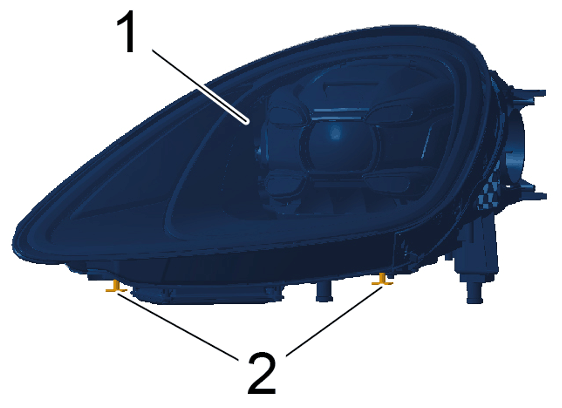

When guiding in the headlight -1-  , make sure that the guide pins -2-  are inserted correctly in the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide pin

1. Installation is performed in reverse order. Pay particular attention to the following:

Tighten fastening screws on headlight to > Tightening torque 5 Nm (3.5 ftlb.)  .

Only when replacing the headlight

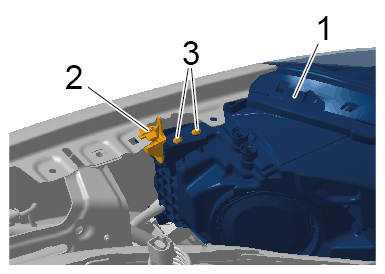

Push new headlight -1-  into the holder until the clip -2-  engages.

Unscrew fastening screws -3-  and remove clip -2-  from headlight -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clip
