Removing Port Plate For ATF Cooler
WARNING: This page is about a different variant/trim than selected.

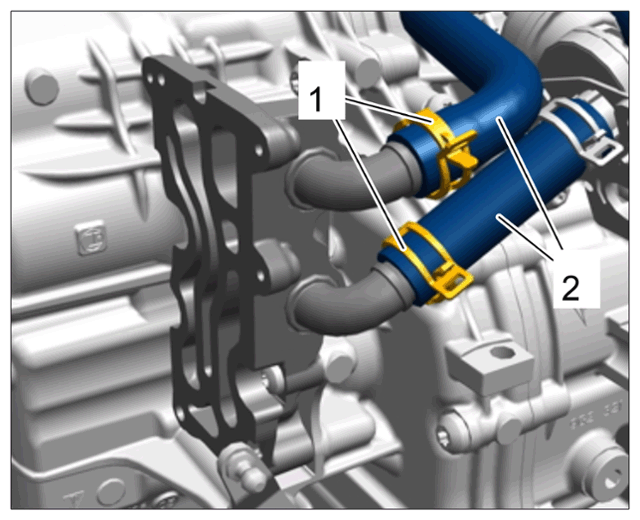

- Loosen clamps -1-
and pull coolant hoses -2-
off the port plate.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

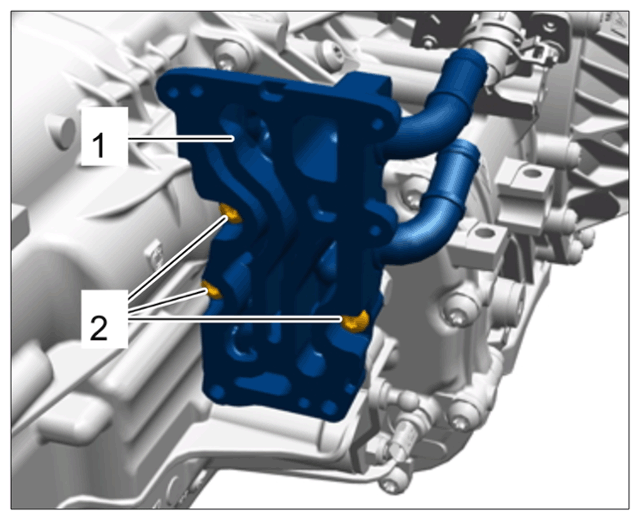

- Unscrew fastening screws -2-
.
- Carefully remove the port plate -1-
from the transmission.
Make sure that the eccentric washer does not fall out of the port plate -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
