Removing Line For ATF Cooling

WARNING: This page is about a different variant/trim than selected.

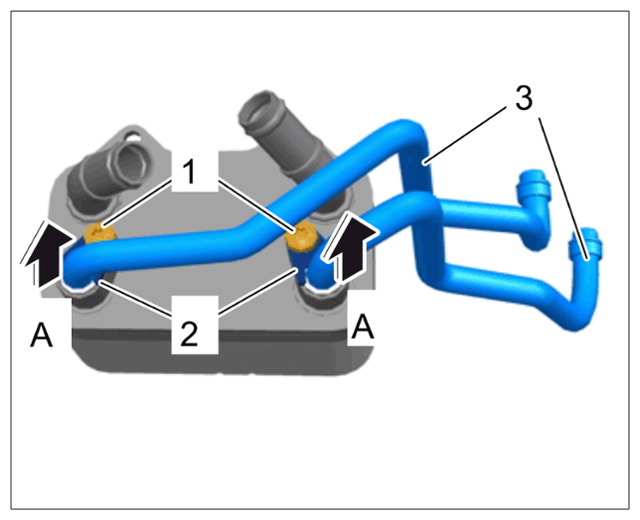

  1. Unscrew fastening screws -1-  .
  2. Remove holder -2-  .
  3. Pull lines -3-  out of the ATF cooler -arrows A-  .
G14946372Courtesy of PORSCHE CARS NORTH AMERICA, INC.
