Removing ATF Cooler

WARNING: This page is about a different variant/trim than selected.

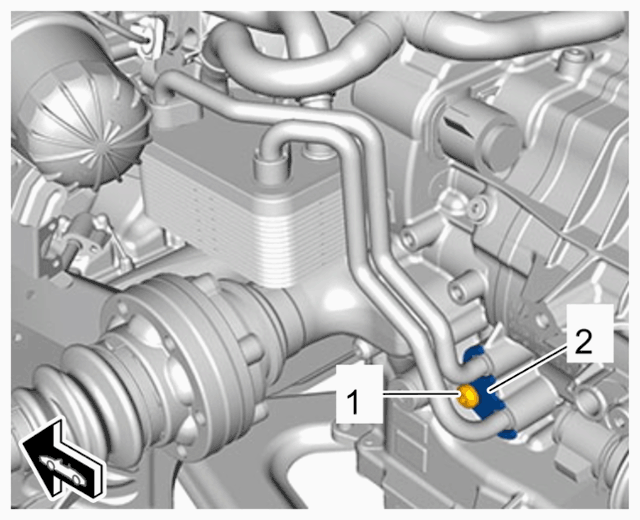

  1. Unscrew fastening screw -1-  and remove holder for oil lines -2-  .
    G14946368Courtesy of PORSCHE CARS NORTH AMERICA, INC.

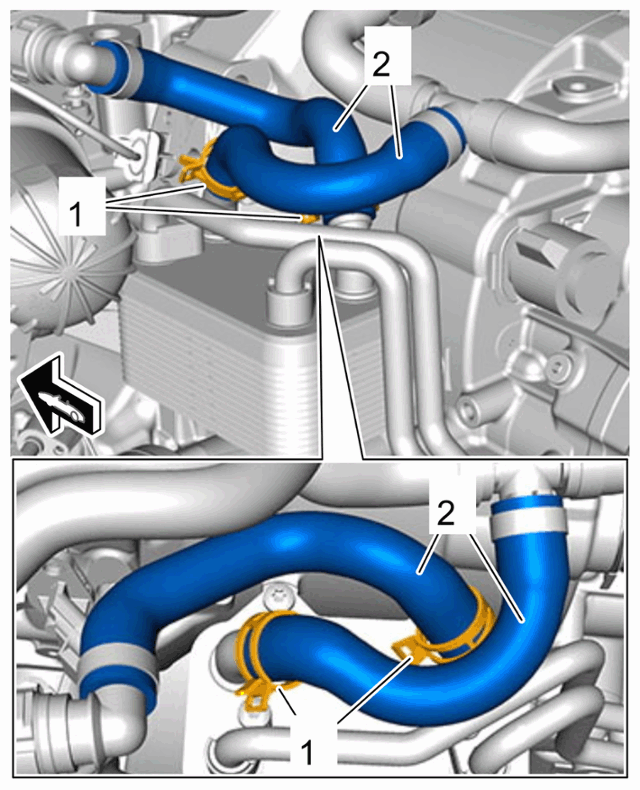

  2. Open the clamps -1-  and pull off coolant hoses -2-  .
    G14946369Courtesy of PORSCHE CARS NORTH AMERICA, INC.

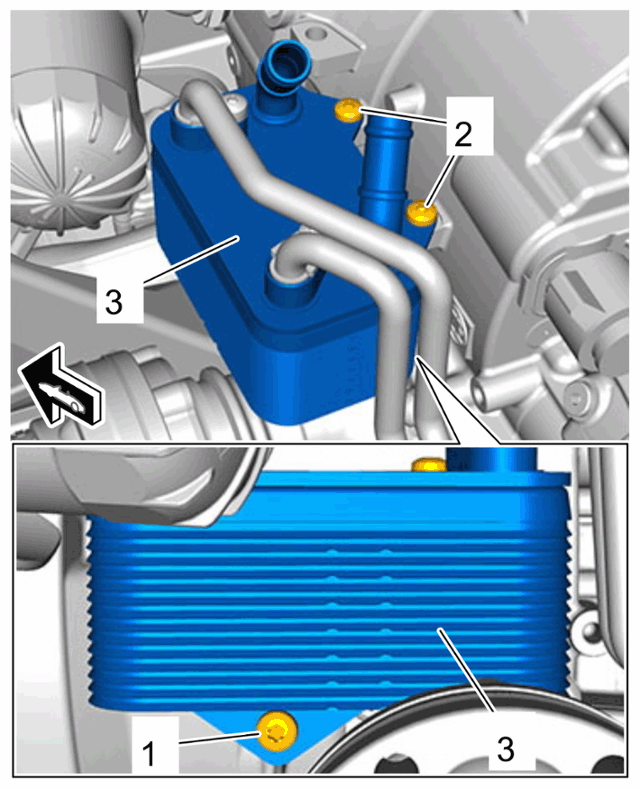

  3. Unscrew and remove lower fastening screw -1-  .
  4. Unscrew and remove upper fastening screws -2-  .
  5. Remove ATF cooler -3-  .
G14946370Courtesy of PORSCHE CARS NORTH AMERICA, INC.
