Checking Water Drains At The Front

  1. Find the installation position of the front water drains.

    > 6048IN WATER DRAIN

  2. Remove front cover -1-  .

    > 508719 REMOVING AND INSTALLING COWL PANEL COVER - article on "Removing"

    G14954127Courtesy of PORSCHE CARS NORTH AMERICA, INC.

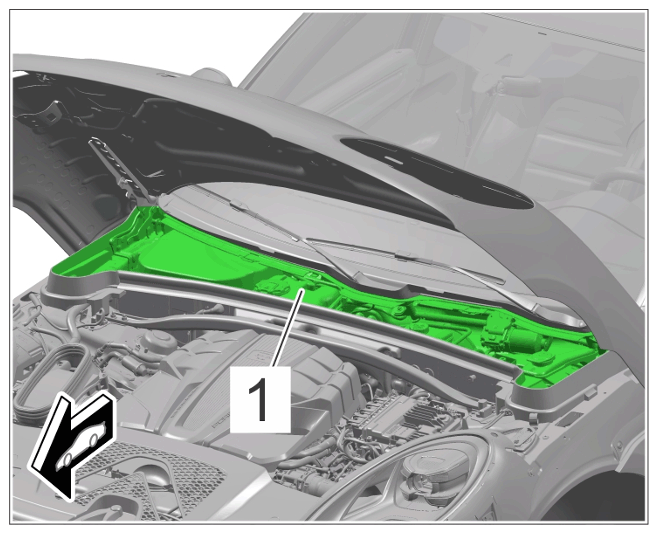

  3. Check for dirt in the area around the water drains -1-  at the front and remove it if necessary.
    G14954128Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Install front cover -1-  .

    > 508719 REMOVING AND INSTALLING COWL PANEL COVER - article on "Installing"

    G14954129Courtesy of PORSCHE CARS NORTH AMERICA, INC.
