Removing And Installing Air Grille (Side Air Intake Cover)

Information

Shown on driver's side; the steps are identical for the passenger's side.

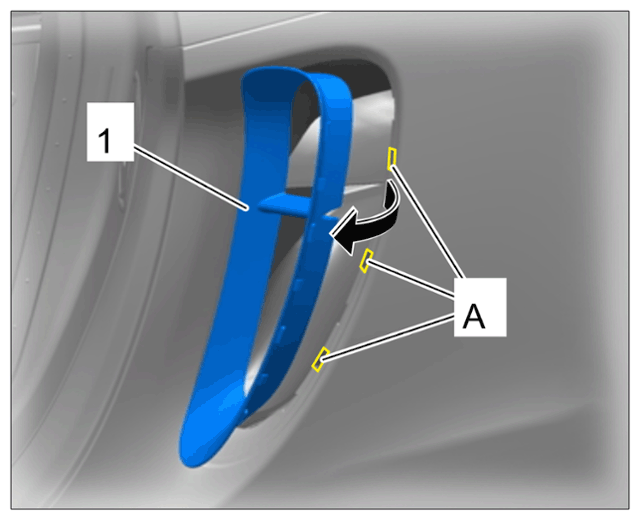

1. Unclip air grille (side air intake cover) -1-  from retaining clips -A-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

2. Installation is performed in reverse order.
