Removing Vacuum Pump
WARNING: This page is about a different variant/trim than selected.

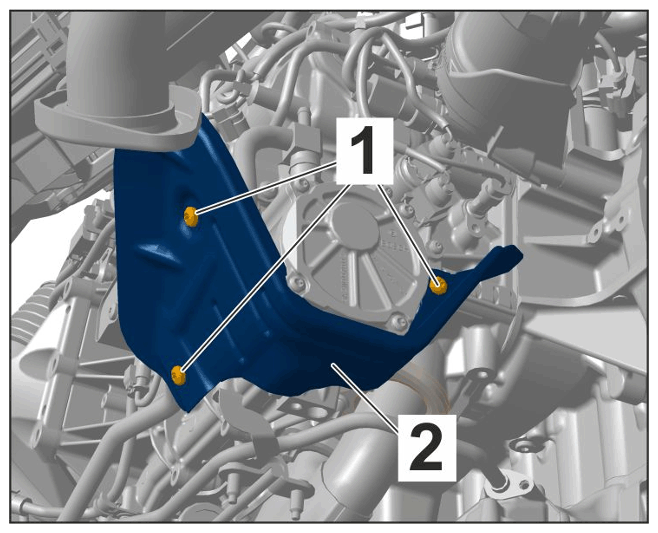

- Remove heat shield -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for heat shield
- 1.1
Unscrew fastening screws -1-
and remove heat shield.

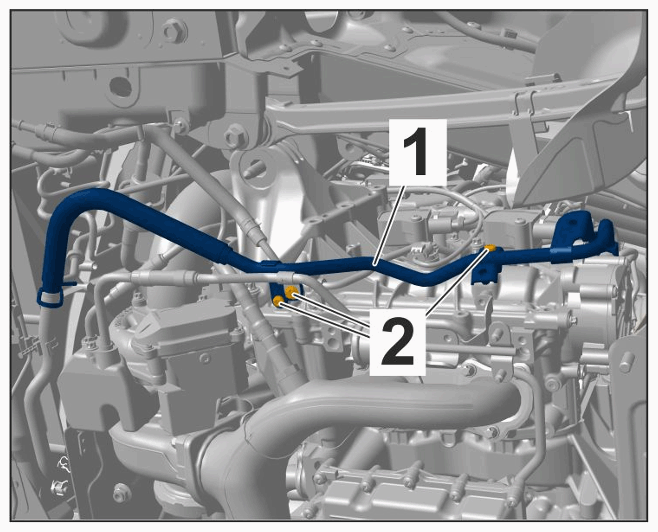

- Disconnect vacuum line -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for vacuum line
- 2.1
Unscrew fastening screws -2-
.
- 2.2
Unscrew fastening screw -3-
fusing > 9 824 - flexible-head socket wrench, a/f 8

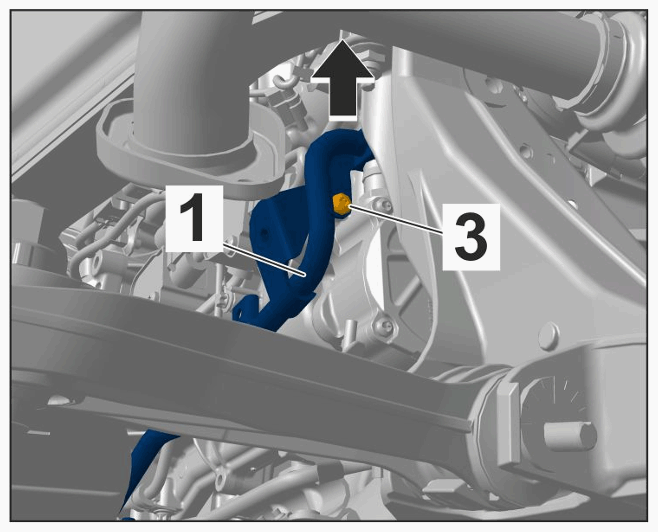

and > 9824/2 - Torx Micro Bit T30
and pull the vacuum line -1-
; out of the vacuum pump -arrow-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pulling vacuum line out of vacuum pump

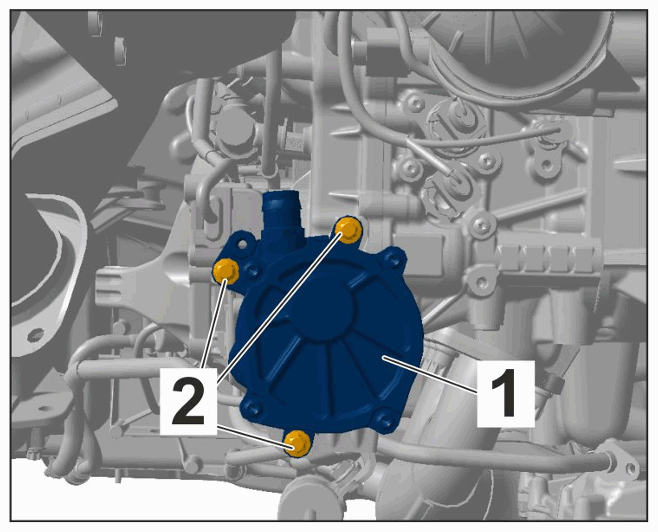

- Remove vacuum pump -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Mounting for vacuum pump
- 3.1
Unscrew fastening screws -2-
and carefully pull off the vacuum pump.
