Installing Vacuum Pump
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Always observe the following points.
- 1.1

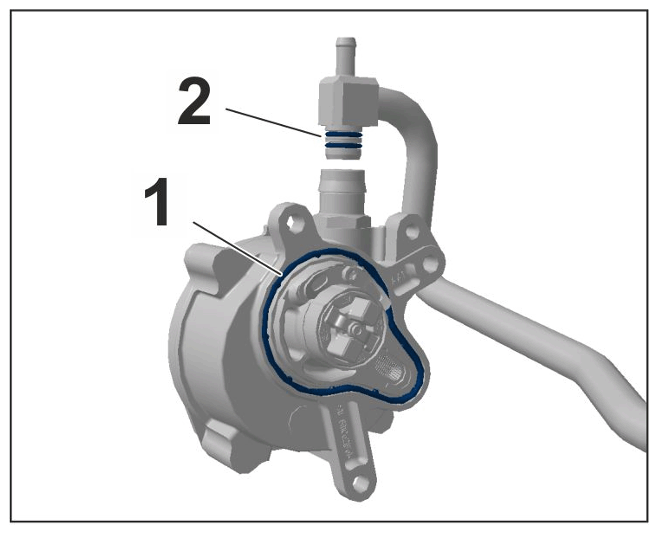

Replace seal -1-
on the vacuum pump, check seals -2-
on the vacuum lines and replace them if necessary.
Replace seals
- 1.2 Grease seal -1- on the vacuum pump with "Kluber Syntheso Glepl" (see Porsche Spare Parts Catalog).
- 1.3 Clean contact surfaces on the vacuum pump and cylinder head.
- 1.4 Align vacuum pump driver.
- 1.5
Observe specified tightening torques:
Vacuum pump to engine: > Tightening torque 10 Nm (7.5 ftlb.) .
Vacuum line to engine: > Tightening torque 10 Nm (7.5 ftlb.) .
Heat shield the engine: > Tightening torque 10 Nm (7.5 ftlb.) .
- 1.1
Replace seal -1-
on the vacuum pump, check seals -2-
on the vacuum lines and replace them if necessary.
