Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

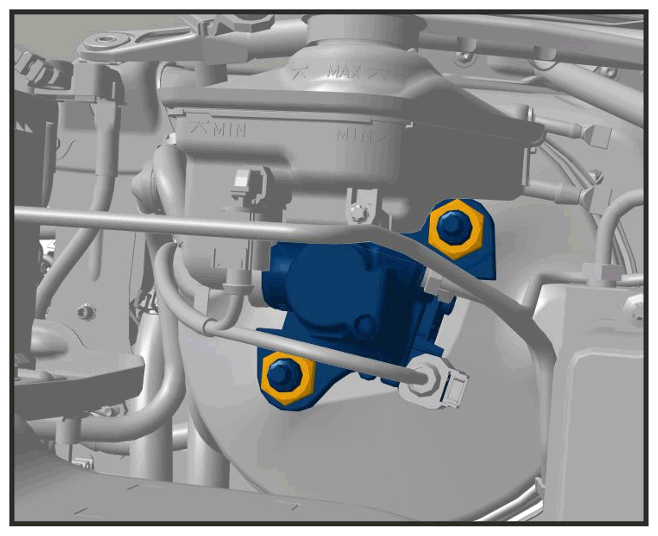

| Brake master cylinder to brake booster | Hexagon nut, M14 | Tightening torque | 49 Nm (36 ftlb.) | +/- 4 Nm (3 ftlb.) | |
|
Brake master cylinder on brake booster |
|||||

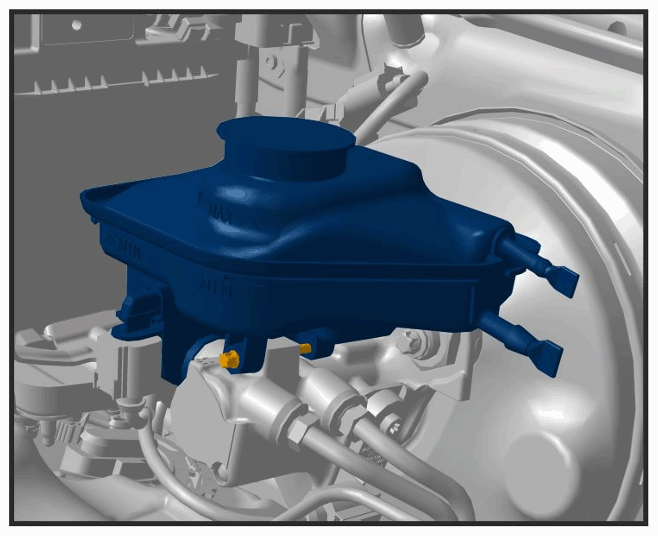

| Brake fluid reservoir to brake master cylinder | Torx screw, E7 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Brake master cylinder on brake booster |
|||||

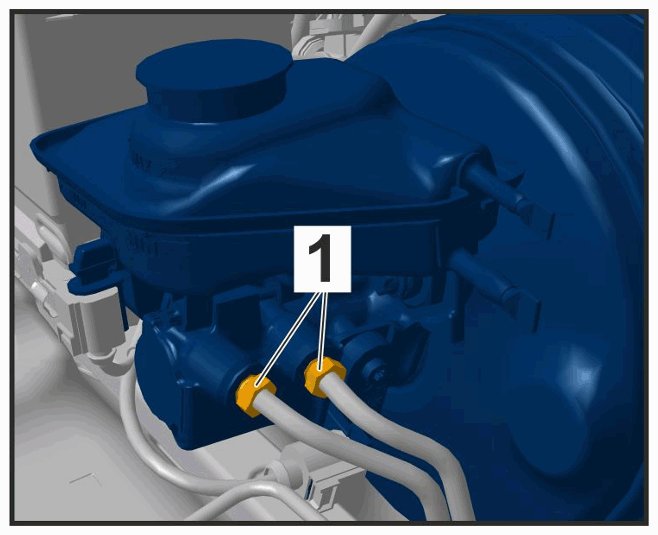

| Brake fluid reservoir on brake master cylinder | Cap screw, M12x1 | Tightening torque | 16 Nm (12 ftlb.) | ||
|
Brake lines on brake master cylinder |
|||||
