Removing Clutch

1. > 9538/1 - Toothed segment-1-  must be fitted on the engine flange as a counter-hold tool.

   Information

   A commercially available socket, for example, is ideal as a spacer.

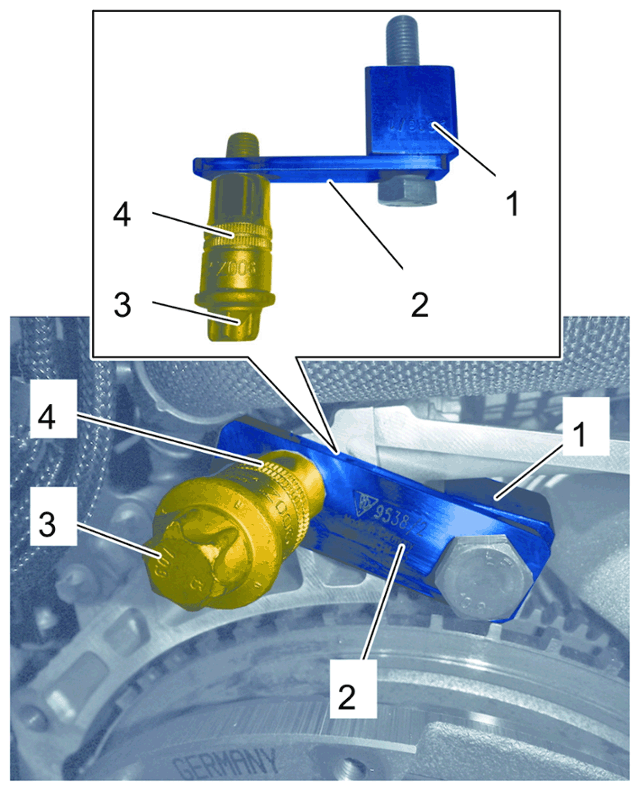

   1. 1.1 > 9538/1 - Toothed segment-1-  must be fitted on the engine flange using original flange screw -3-  , > 9538/2 - holder-2-  and spacer -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   The fastening screws on the clutch cover must be loosened in several steps and in diagonally opposite sequence in order to prevent deformation of the clutch pressure plate.

2. Remove the clutch -2-  .
   1. 2.1 Loosen fastening screws -1-  on the clutch cover in several steps and in diagonally opposite sequence.

      Information

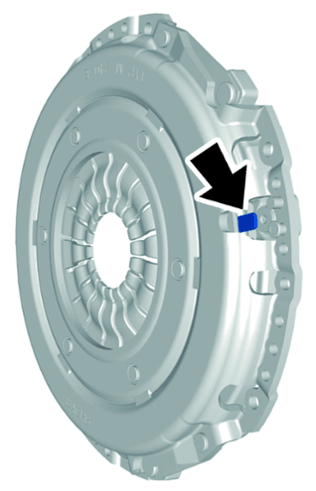

      Be careful with the adjustment device -arrow-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   2. 2.2 Remove clutch cover with pressure plate and drive plate.
