Installing Clutch Master Cylinder

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of injury and damage from brake fluid!

Poisonous if swallowed!
Irritation and damage to skin
Avoid contact with paint surfaces
- forward Store brake fluid in suitable, labelled containers only
- forward Wear protective gloves and goggles
- forward In the event of contact (eyes or skin), wash immediately with water
- forward In the event of contact with paint surfaces, wash off immediately with water - do not wipe off

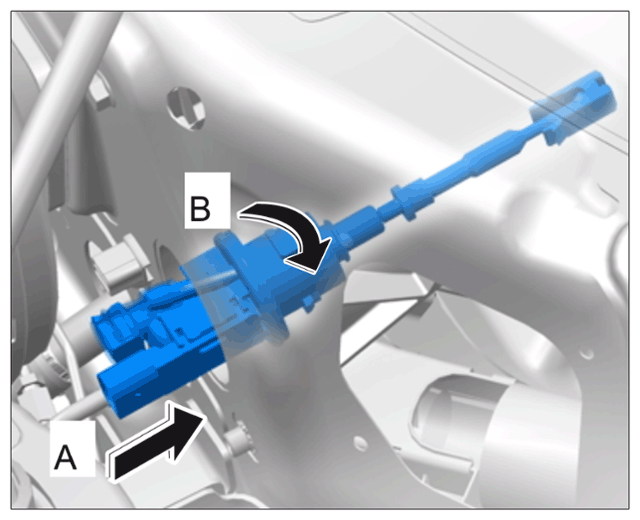

Position clutch master cylinder -arrow A- and lock it by turning it clockwise -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull stoppers off the supply and pressure lines.

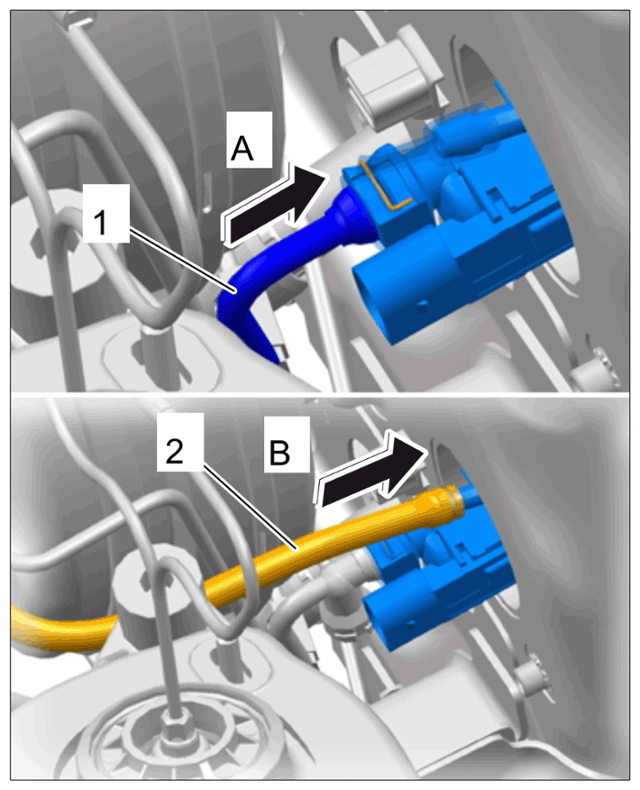

Connect supply and pressure lines.

3.1 Connect pressure line -1- (-arrow A- ) until the locking mechanism engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

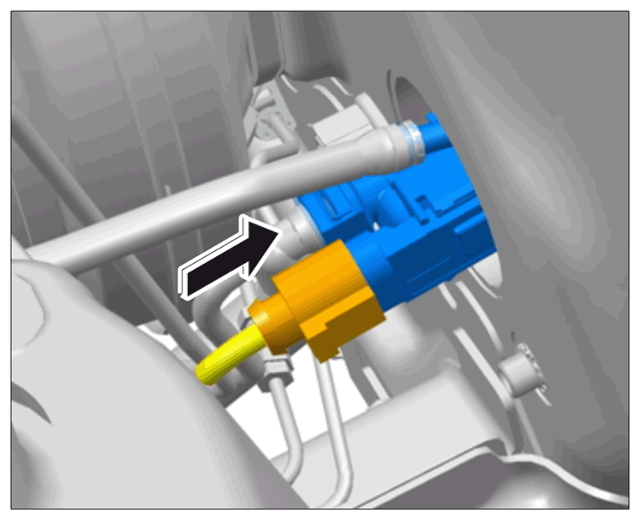

Plug in electric plug connection -Arrow- until the connector engages securely.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

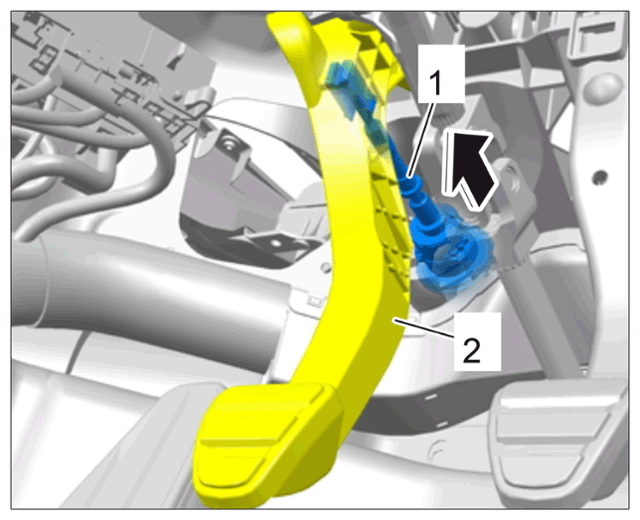

Press in retaining clip for push rod -1- in the clutch pedal -2- (-Arrow- ) until it clicks into place.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

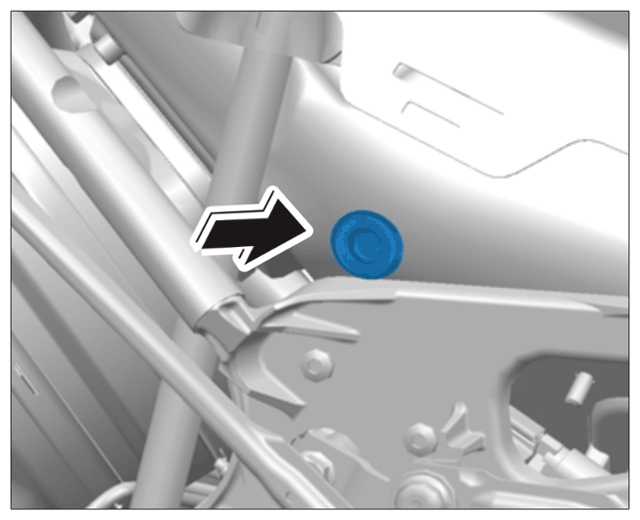

- Due to a production change on new vehicles, adhesive pads are used instead of rubber sleeves.
- The Porsche Spare Parts Catalog has expanded the list of adhesive pads so that the relevant parts variant can be ordered.

Release clutch power spring assembly.

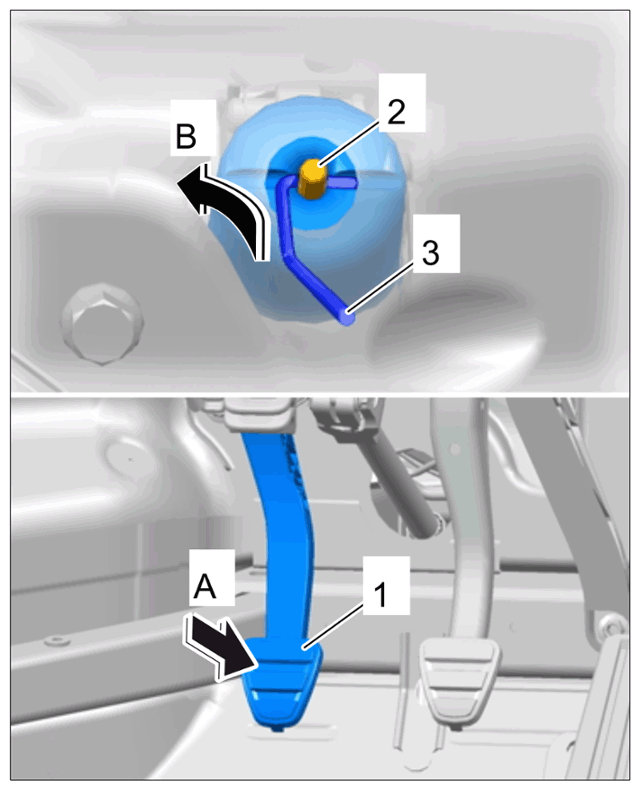

6.1 Press the clutch pedal -1- slightly -arrow A- until the auxiliary lock -3- can be pulled out of the clutch power spring axle -2- (-Arrow- ).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
