Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Brake booster to pedal module	Torx screw, M8 x 165 x 77	Tightening torque	23 Nm (17 ftlb.)

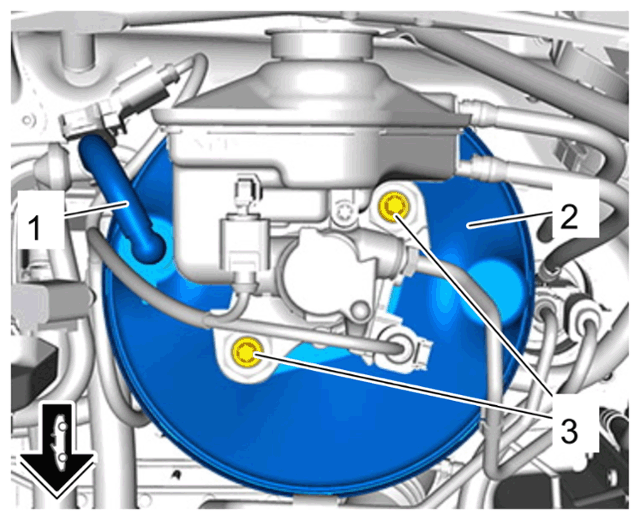

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake booster vacuum line
Mounting saddle to body	Hexagon-head bolt, M8 x 25	Tightening torque	23 Nm (17 ftlb.)

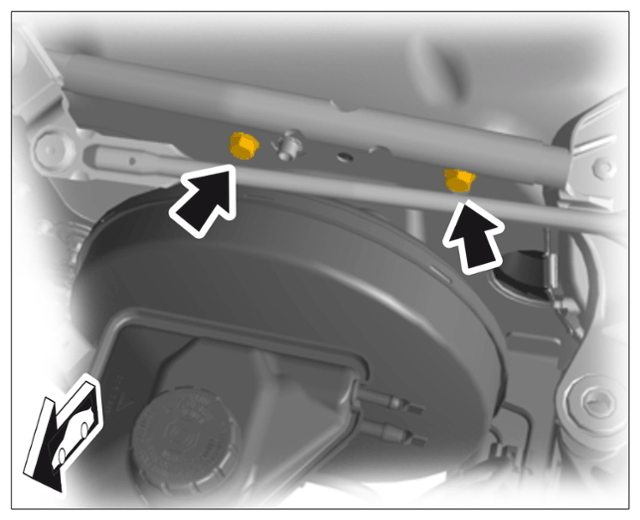

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting saddle
Mounting saddle to body	Hexagon nut, M8	Tightening torque	23 Nm (17 ftlb.)

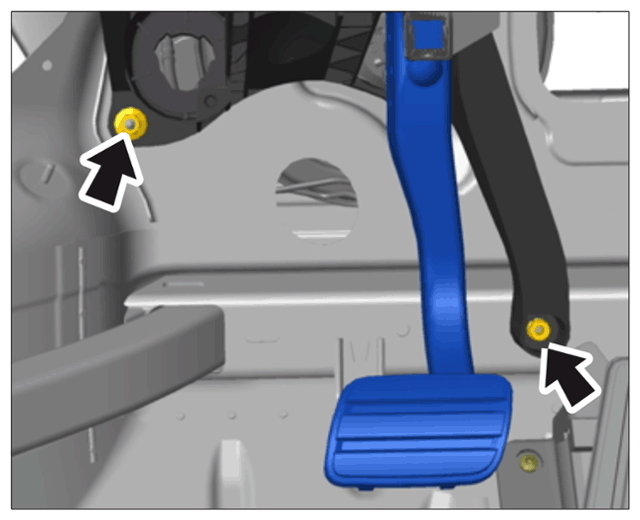

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Disconnecting pedals
