Removing Clutch Pedal

WARNING: This page is about a different variant/trim than selected.
WARNING: Preloaded or pressurized components
  • Risk of squashing or bruising
    • forward Do not reach into the danger area.
    • forward Relieve the tension on components before starting work.
    • forward Secure components to prevent them from loosening suddenly.

Information

Brake fluid is hygroscopic! Close off all lines immediately using suitable stoppers.

Brake fluid will flow from the lines. Place a cloth under the clutch master cylinder.

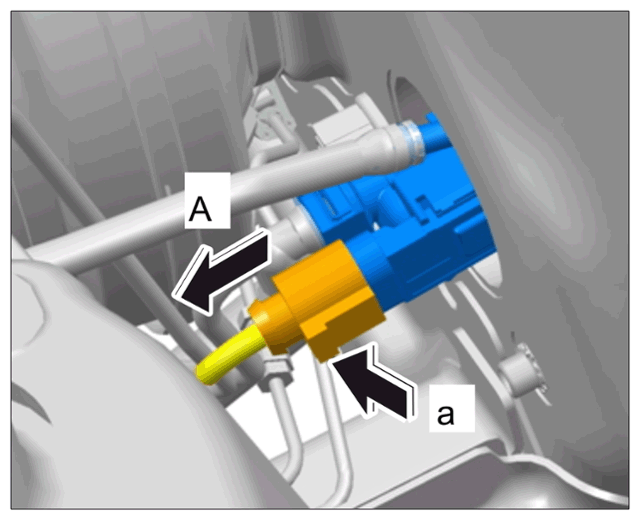

  1. Release electric plug connection on the clutch master cylinder -arrow a-  and disconnect it -arrow A-  .
    G14946470Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Disconnect the supply and pressure hoses on the clutch master cylinder.

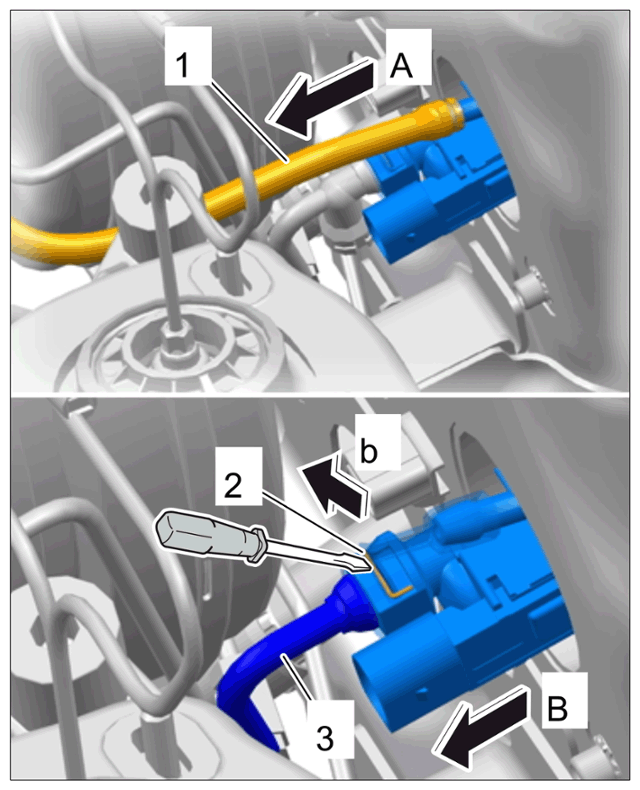

    G14946471Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1 Pull off supply hose -1-  (-arrow A-  ) and close it off using a suitable stopper.
    2. 2.2 Release the lock -2-  using a screwdriver -arrow b-  .
    3. 2.3 Pull off pressure hose -3-  (-arrow B-  ) and close it off using a suitable stopper.
  3. Disengage push rod for brake booster (in the footwell).
    G14946472Courtesy of PORSCHE CARS NORTH AMERICA, INC.

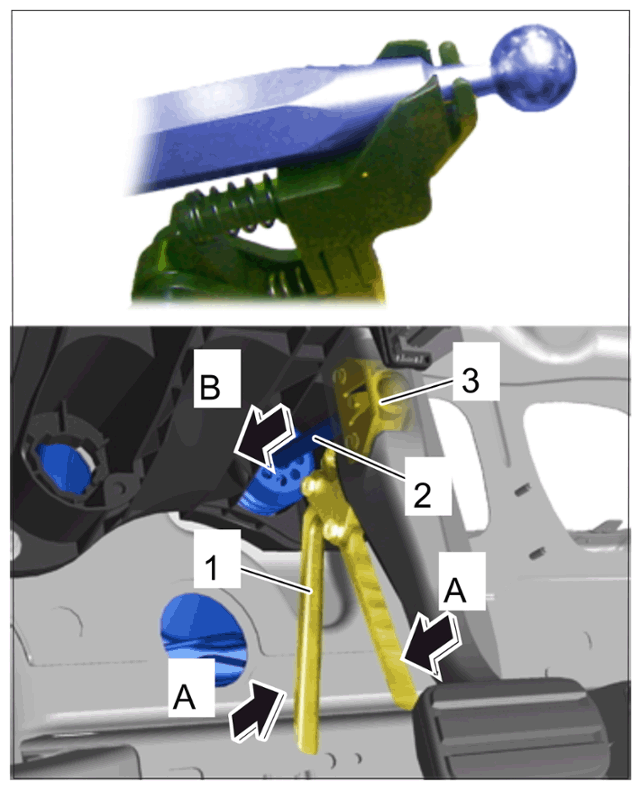

    1. 3.1 > T40024 - Unlocking tool-1-  must be inserted ahead of the ball joint on the push rod -2-  from below.
    2. 3.2 Press the unlocking tool together -arrows A-  and separate the ball joint from the securing clip -3-  (-arrow B-  ).
  4. Remove mounting saddle.
    1. 4.1 Unscrew fastening screws -Arrows-  above the brake booster.
      G14946473Courtesy of PORSCHE CARS NORTH AMERICA, INC.

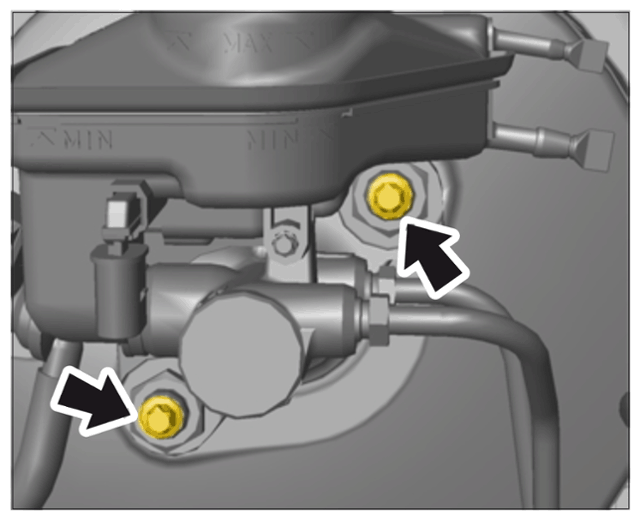

    2. 4.2 Unscrew fastening screws -Arrows-  from the brake booster.
      G14946474Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 4.3 Unscrew fastening nut -2-  on the inside of the mounting saddle -1-  .
      G14946475Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    4. 4.4 Remove mounting saddle.
  5. Secure the clutch power spring assembly on the removed support.

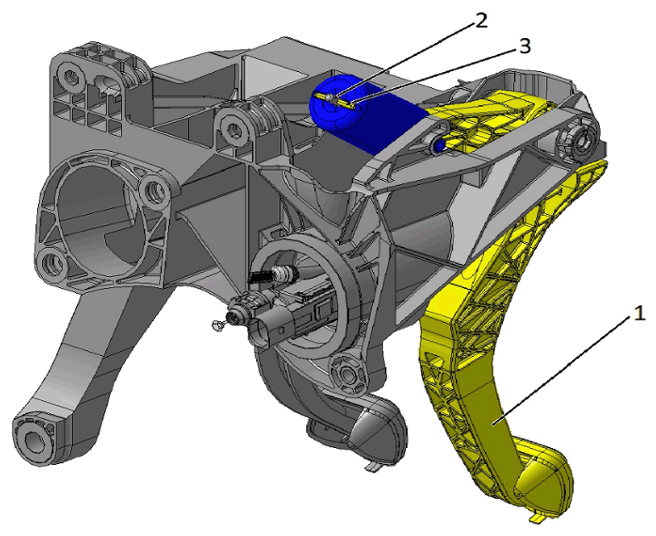

    1. 5.1 Press the clutch pedal -1-  slightly until the clutch power spring axle -2-  is visible through the bore -3-  .
      G14946476Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 5.2 Guide a suitable cotter pin into the bore -3-  on the clutch power spring axle -2-  .
  6. Loosen clutch master cylinder from the clutch pedal -2-  .
    G14946477Courtesy of PORSCHE CARS NORTH AMERICA, INC.

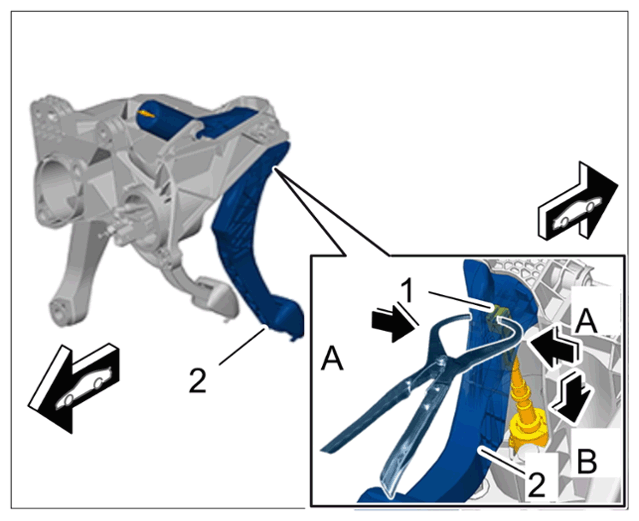

    1. 6.1 Release retaining clip for push rod -1-  on the clutch pedal -2-  using > T10005 - pliers  (-arrows A -  ) and pull out the push rod -arrow B-  .

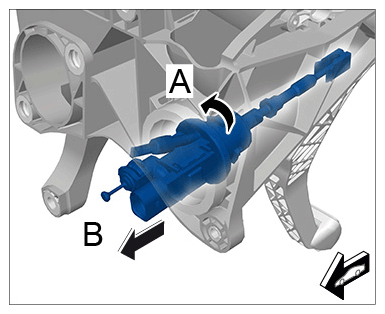

    2. 6.2 Turn the clutch master cylinder anti-clockwise by approx. 60° -arrow A-  .
      G14946478Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 6.3 Pull the clutch master cylinder out slightly -arrow B-  .
  7. Remove pedal shaft -2-  .
    1. 7.1 Remove retaining clip -1-  from the pedal shaft -2-  using a screwdriver -arrow A-  .

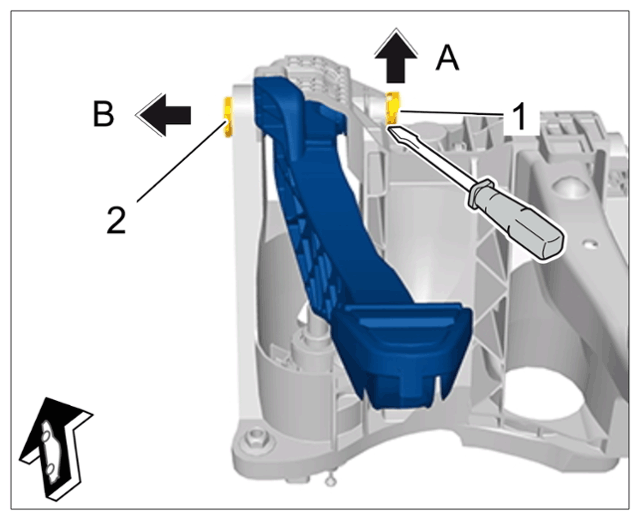

      G14946479Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 7.2 Press pedal shaft -2-  through to the left -arrow B-  and remove it.
  8. Remove clutch pedal.
    G14946480Courtesy of PORSCHE CARS NORTH AMERICA, INC.

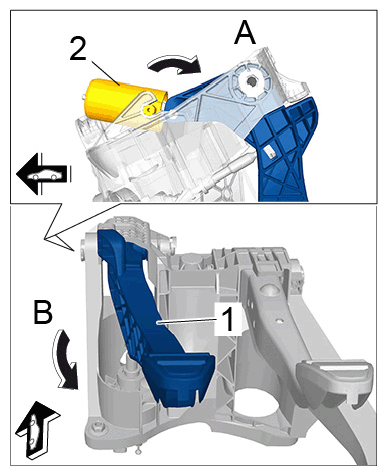

    1. 8.1 Pull the clutch pedal -1-  down -arrow A-  until the clutch power spring assembly -2-  disengages.
    2. 8.2 Turn the clutch pedal -1-  and clutch power spring assembly -2-  (-arrow B-  ) and remove it from the bearing bracket.
