Remove Oil Tank

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

WARNING: Hot fluid

Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.

NOTIFICATION

Mixing fluids

Risk of damage to components
- → Close off all openings immediately after exposing them (with adhesive tape, suitable stoppers).

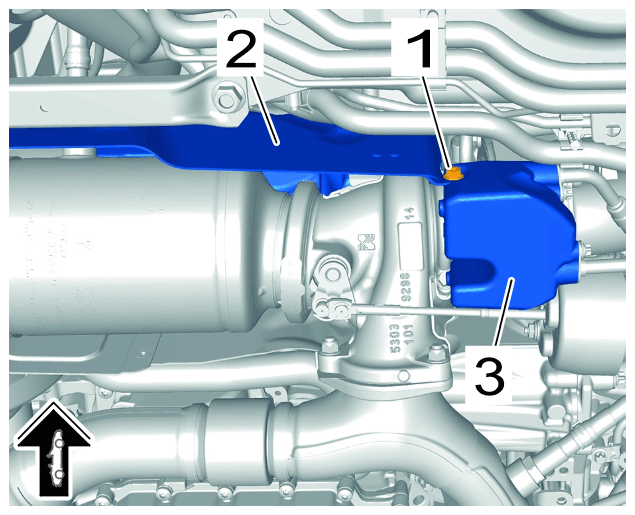

Unscrew screw -1 - on heat shield -2 - for the turbocharger oil tank -3 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

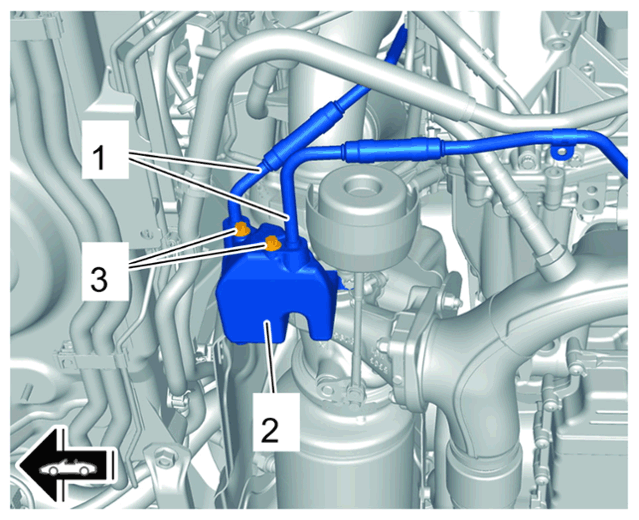

Disconnect oil lines -1 - at the oil tank -2 -.
1. 2.1 Unscrew screws -3 - and pull off oil lines -1 -.
2. 2.2 Collect emerging oil.
3. 2.3 Replace O-rings.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

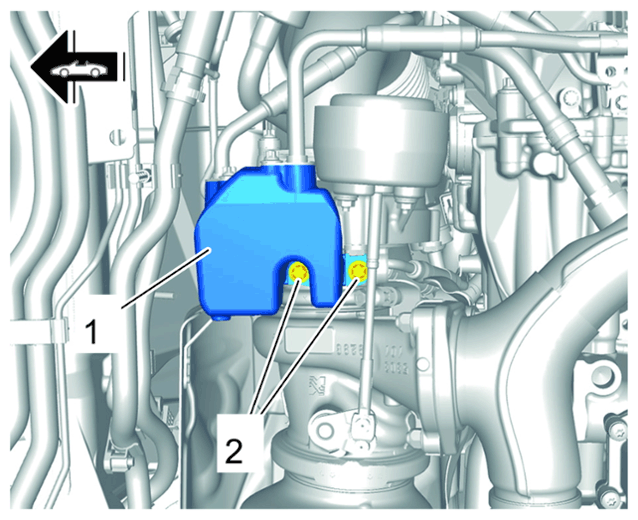

Remove oil tank -1 -.
1. 3.1 Unscrew screws -2 -.
2. 3.2 Remove oil tank -1 - in a downward direction.
3. 3.3 Collect emerging oil.
4. 3.4 Replace O-ring.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
