Removing Turbocharger Vent Line
WARNING: This page is about a different variant/trim than selected.

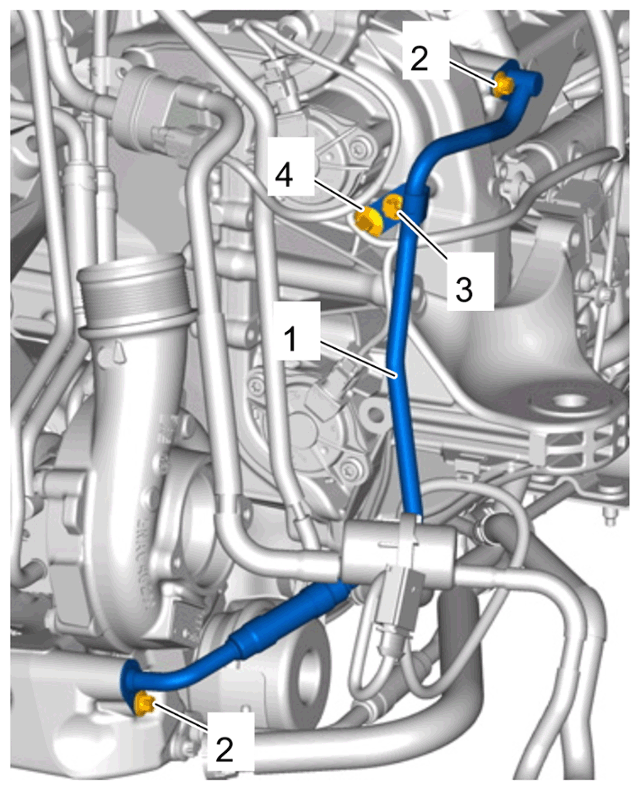

- Remove turbocharger vent line -1
-.
- 1.1 Unscrew screws -2
- at the vent line connections.
- 1.2 Unscrew screw -3
- on vent line holder.
- 1.3 Loosen electric line holder -4
- from the holder.
- 1.4 Remove vent line -1
- by pulling it downwards.
- 1.5 Collect emerging oil.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
