Installing Turbocharger Vent Line

WARNING: This page is about a different variant/trim than selected.

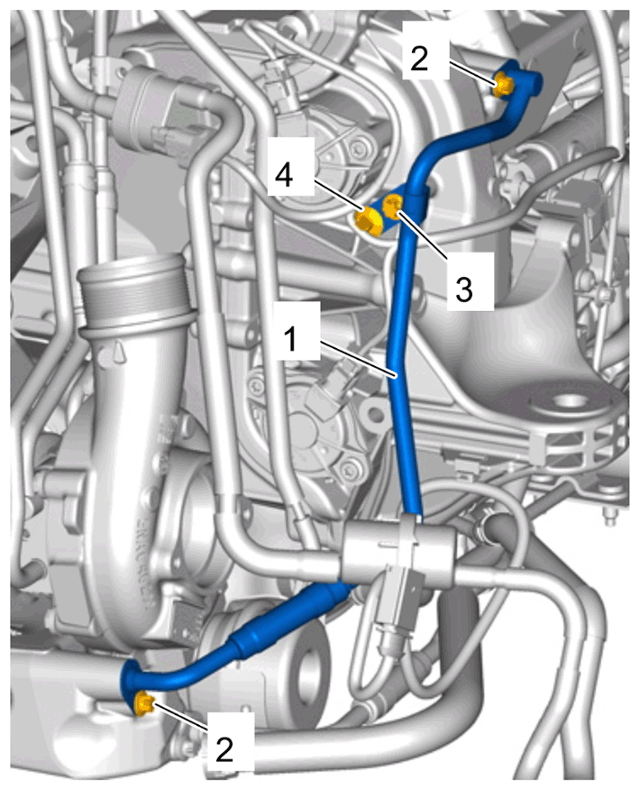

  1. Install turbocharger vent line -1  -.
    1. 1.1 Coat new O-rings with grease.
    2. 1.2 Place vent line -1  - in installation position.
    3. 1.3 Tighten screws -2  - on the vent line connections to > Tightening torque 10 Nm (7.5 ftlb.)  .
    4. 1.4 Tighten screw -3  - on vent line holder to > Tightening torque 10 Nm (7.5 ftlb.)  .
    5. 1.5 Insert electric line holder -4  - into vent line holder.
    G14945771Courtesy of PORSCHE CARS NORTH AMERICA, INC.
