Removing Oil Feed Line For Turbocharger

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

WARNING: Hot fluid

Danger of scalding
- → Let the fluid cool down.
- → Wear personal protective gear.

NOTIFICATION

Mixing fluids

Risk of damage to components
- → Close off all openings immediately after exposing them (with adhesive tape, suitable stoppers).

Information

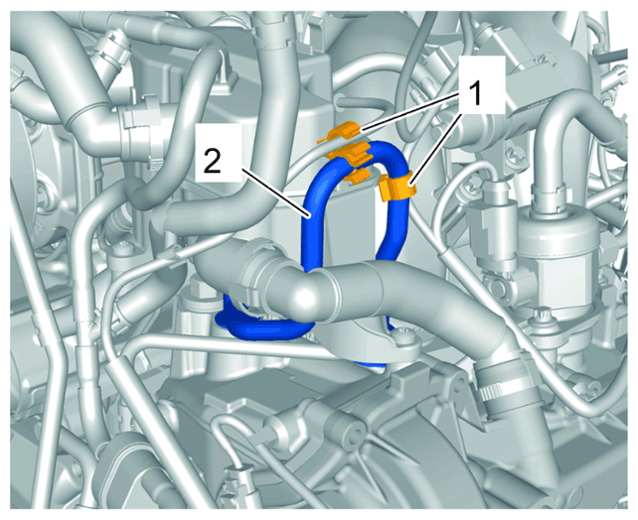

Loosen holder -1 - for electric line -2 - at the oil line.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

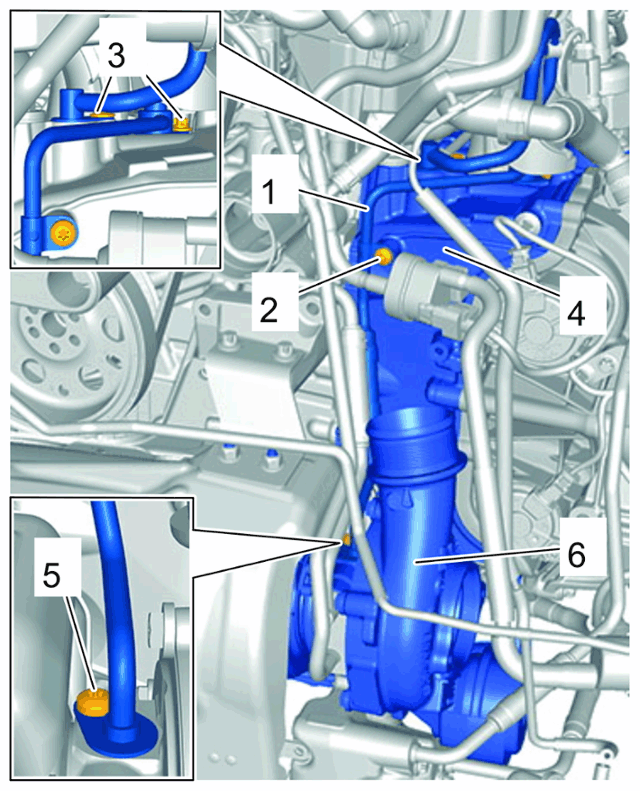

Remove oil feed line for turbocharger -1 -.
1. 2.1 Unscrew screw -2 - on the cylinder head -4 -.
2. 2.2 Unscrew screws -3 - on the connections.
3. 2.3 Unscrew screw -5 - using tool > VAS 6959 - Torx screwdriver insert T30 .
4. 2.4 Disconnect oil line -1 - at the top of the cylinder head -4 -.
5. 2.5 Disconnect oil line -1 - at the turbocharger -6 -.
6. 2.6 Guide out oil line -1 - and remove it in an upward direction.
7. 2.7 Collect emerging oil.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
