Removing Electronic Adjuster For Turbocharger

WARNING: This page is about a different variant/trim than selected.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.

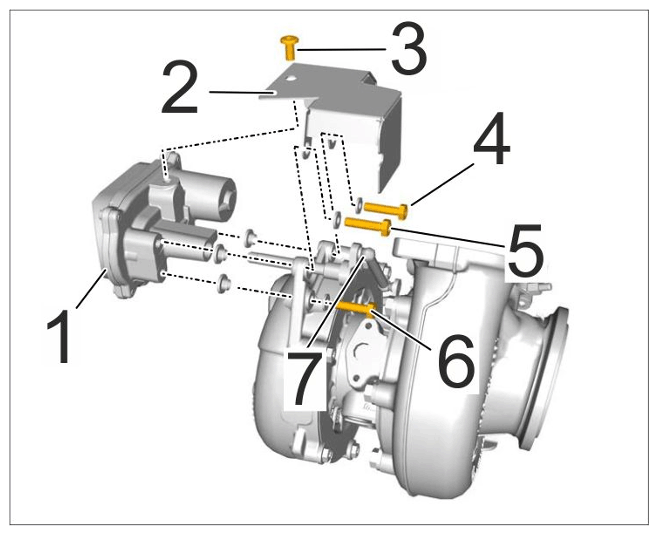

  1. Remove electronic adjuster for turbocharger -1  -.
    1. 1.1 Unclip linkage -7  - using a plastic wedge.
    2. 1.2 Loosen and unscrew screw -3  -.
    3. 1.3 Loosen and unscrew screw -4  - using > 9824/2 - Torx Micro Bit T30  and an 8-mm ratchet ring wrench.
    4. 1.4 Loosen and unscrew screws -5  - and -6  -.
    5. 1.5 Remove electronic adjuster -1  - and heat shield -2  -.
    G14945764Courtesy of PORSCHE CARS NORTH AMERICA, INC.
