Installing Electronic Adjuster For Turbocharger

WARNING: This page is about a different variant/trim than selected.

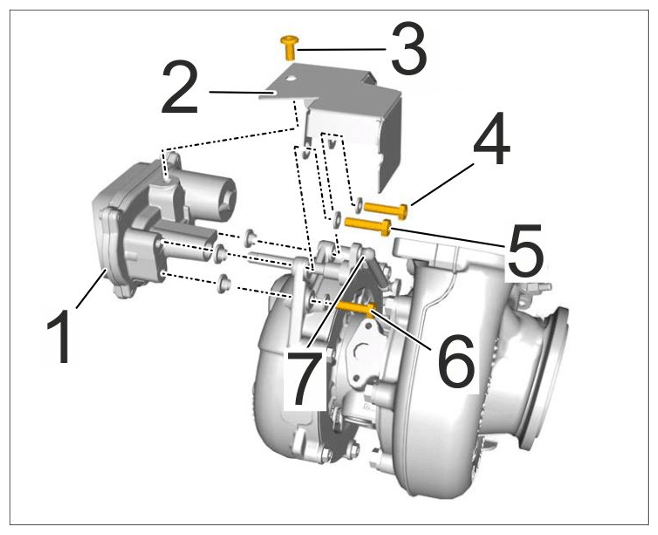

Install electronic adjuster for turbocharger -1 -.
1. 1.1 Position electronic adjuster -1 - and heat shield -2 - and fit screws.
2. 1.2 Screw in screw -4 - using > 9824/2 - Torx Micro Bit T30 and tighten using > V.A.G 1783 - Torque wrench, 2-10 Nm (1.5-7.5 ftlb.) .
  > Tightening torque 7 Nm (5 ftlb.) +/- 1 Nm (0.5 ftlb.)
3. 1.3 Tighten screws -5 - and -6 -.
  > Tightening torque 7 Nm (5 ftlb.) +/- 1 Nm (0.5 ftlb.)
4. 1.4 Tighten screw -3 -.
  > Tightening torque 4 Nm (3 ftlb.) +/- 1 Nm (0.5 ftlb.)
5. 1.5 Also clip in linkage -7 -.
