Detaching And Securing Charge Air Cooler (Service Position)

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

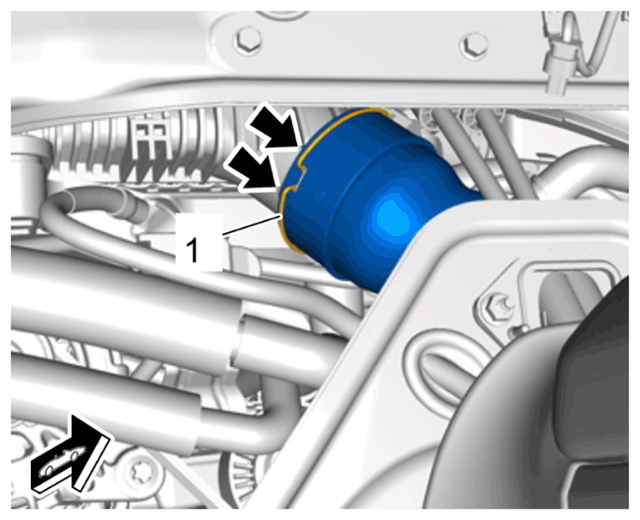

Remove moulded hose -1 - for throttle body.
1. 1.1 Open screw-type clamps and pull off moulded hose.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

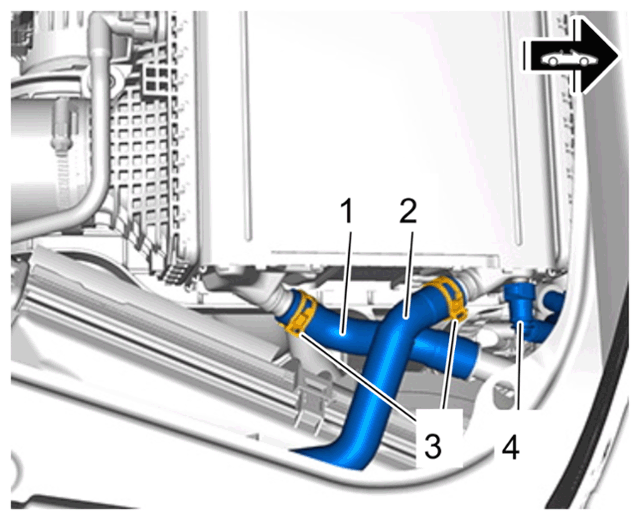

Disconnect vent lines and connecting hose for the ambient air valve.
1. 2.1 Pull off plug-in couplings -2 -.
2. 2.2 Open spring clamp -4 - and pull off hose.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

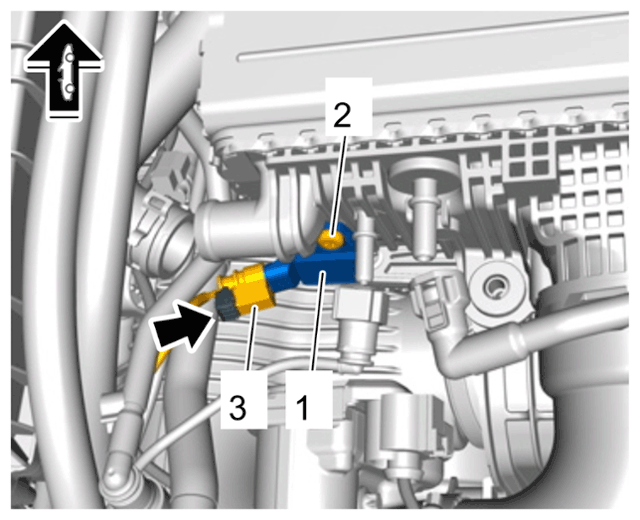

Unlock and pull off cable plug -3 - on boost pressure sensor -1 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

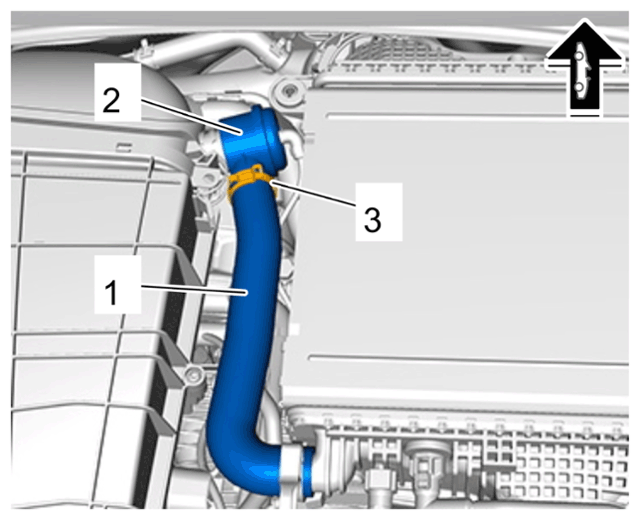

Disconnect connecting hose -1 - on ambient air valve -2 -.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

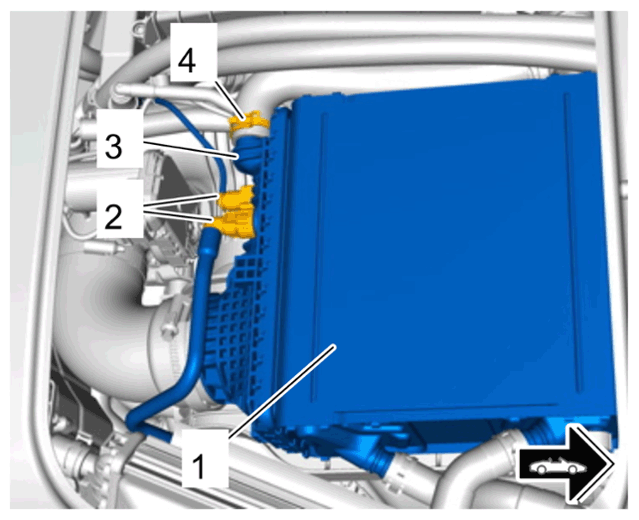

Pull off vent line -4 - on the charge air cooler.
1. 5.1 Press locking lugs and pull off the line.
2. 5.2 Close off vent line connection and secure it to prevent coolant from leaking.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close off coolant openings.

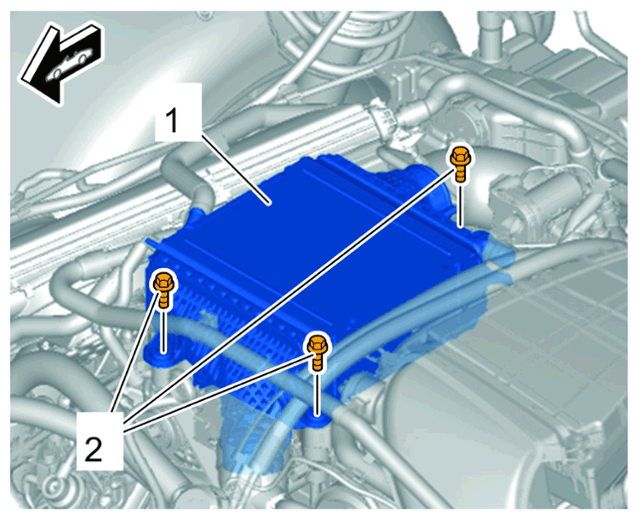

Detach charge air cooler -1 -.
1. 7.1 Unscrew M6 screws -2 -.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

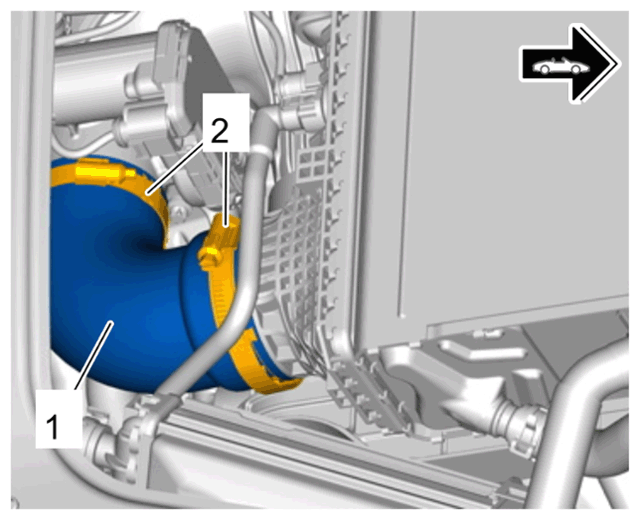

Detach connection to the pressure pipe.
1. 8.1 Open spring clamp -1 - and pull off charge air cooler by pulling it upwards.
  Check the installation position of the spring clamp!
2. 8.2 Re-fit spring clamp immediately.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

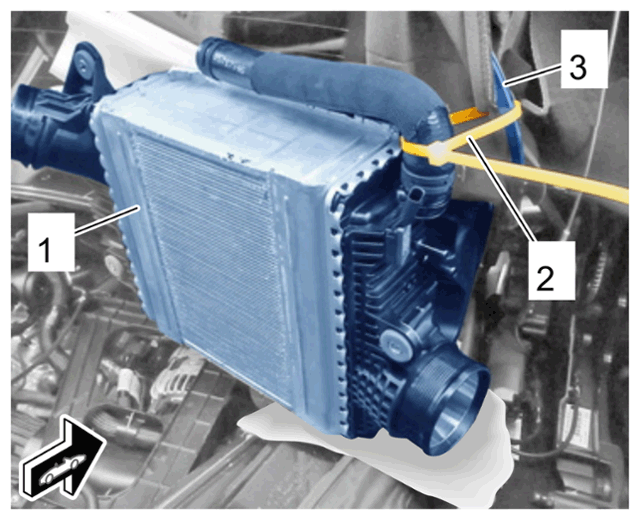

Secure charge air cooler -1 - with tie-wrap -2 - on convertible top linkage (Boxster) -3 - or lid hinge (Cayman).
Attach or fit protective covers on the body, trim panels and convertible top window (Boxster)!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Re-fit charge air cooler when you have finished carrying out repairs.
> 214319 REMOVING AND INSTALLING CHARGE-AIR COOLER .
