Remove Holder For Charge Air Cooler
WARNING: This page is about a different variant/trim than selected.

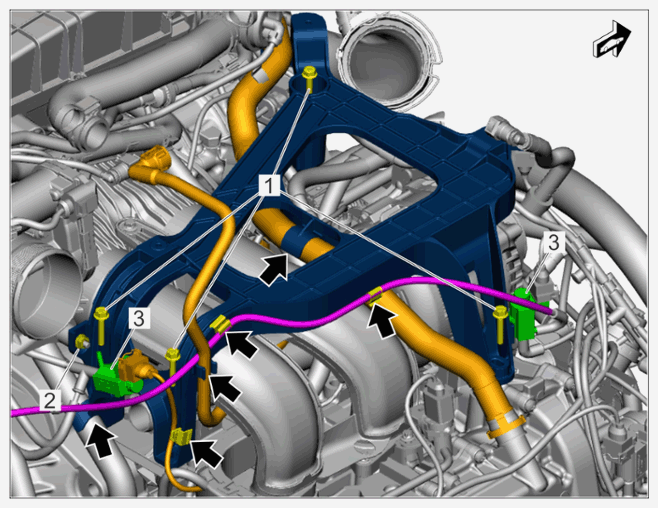

- Removing holder for charge-air cooler
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
- 1.1 Unscrew nuts -1
- and screws -2
-.
- 1.2 Unclip solenoid valves -3
-.
- 1.3 Unclipping lines -Arrows-
- 1.4 Guide out holder for charge-air cooler.
