Removing Moulded Hose
WARNING: This page is about a different variant/trim than selected.
Information
- Open connections and lines must be closed off using suitable stoppers or caps.

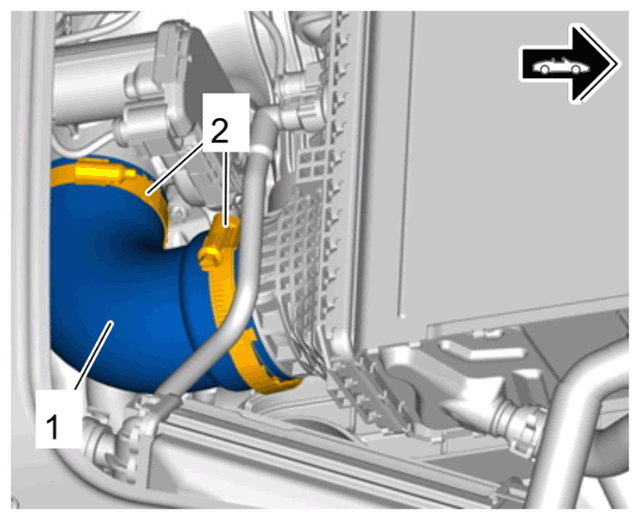

- Remove moulded hose -1
- at the bottom.
- 1.1 Loosen screw-type clamps -2
- and remove moulded hose -1
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

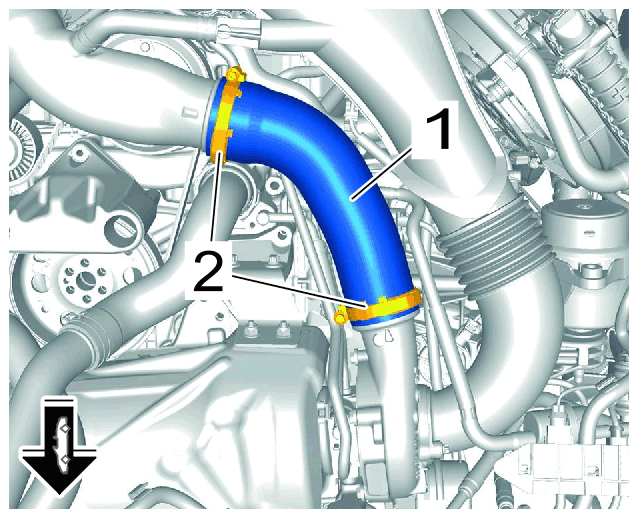

- Remove moulded hose -1
- at the top.
- 2.1 Loosen screw-type clamps -2
- and remove moulded hose -1
-.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
