Installing Moulded Hose

WARNING: This page is about a different variant/trim than selected.

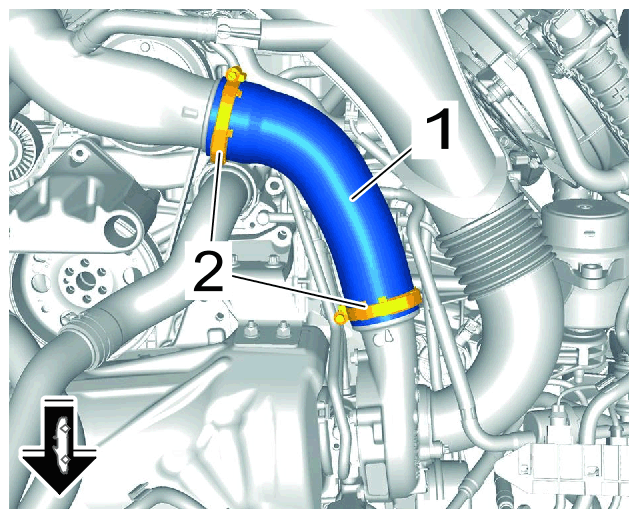

Install moulded hose -1 - at the bottom.
1. 1.1 Place moulded hose in installation position and secure screw-type clamps.
  > Tightening torque 5.5 Nm + 0.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

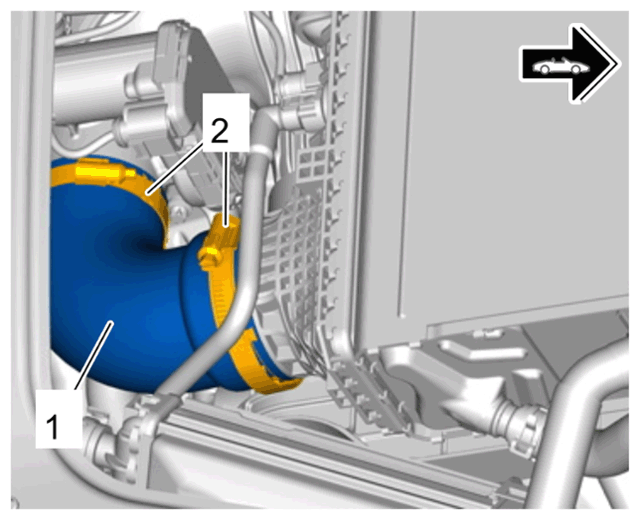

Install moulded hose -1 - at the top.
1. 2.1 Place moulded hose -1 - in installation position and secure screw-type clamps -2 -.
  > Tightening torque 5.5 Nm + 0.5 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
