Component Overview

WARNING: This page is about a different variant/trim than selected.

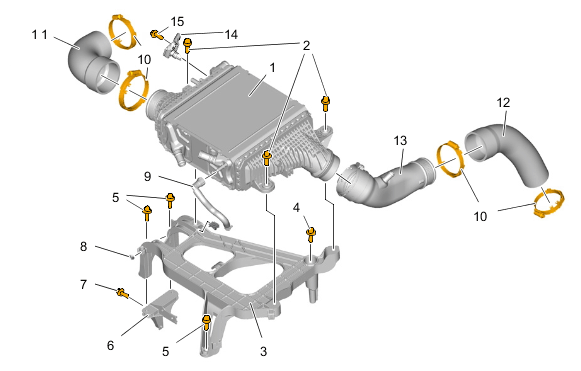

Fig 1: Charge-Air Cooler, Pressure Pipe And Moulded Hoses Components Location
G14945734Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. 10 Screw-type clamps
  2. 11 Moulded hose, top
  3. 12 Moulded hose, bottom
  4. 13 Pressure pipe
