Removing Turbocharger (VTG)

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    • → Let the fluid cool down.
    • → Wear personal protective gear.
CAUTION: Hot components
  • Risk of burns
    • → Let hot components cool down.
    • → Wear personal protective gear.

NOTIFICATION

Mixing fluids

Information

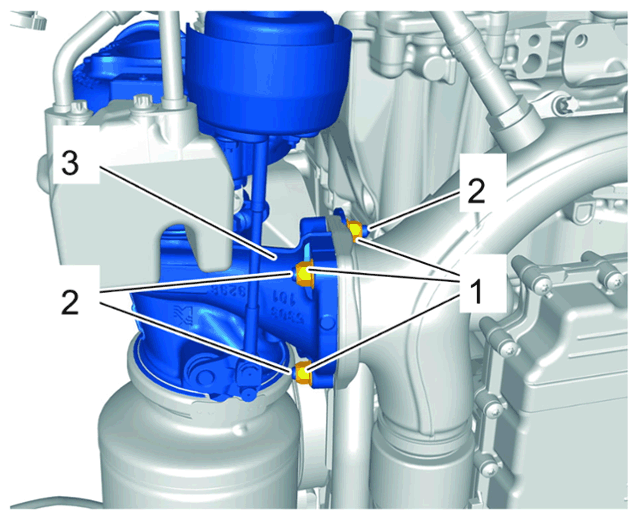

  1. Unscrew fastening nuts -1  - and unscrew studs -2  - on the turbocharger/exhaust manifold flange -3  -.
    G14945698Courtesy of PORSCHE CARS NORTH AMERICA, INC.

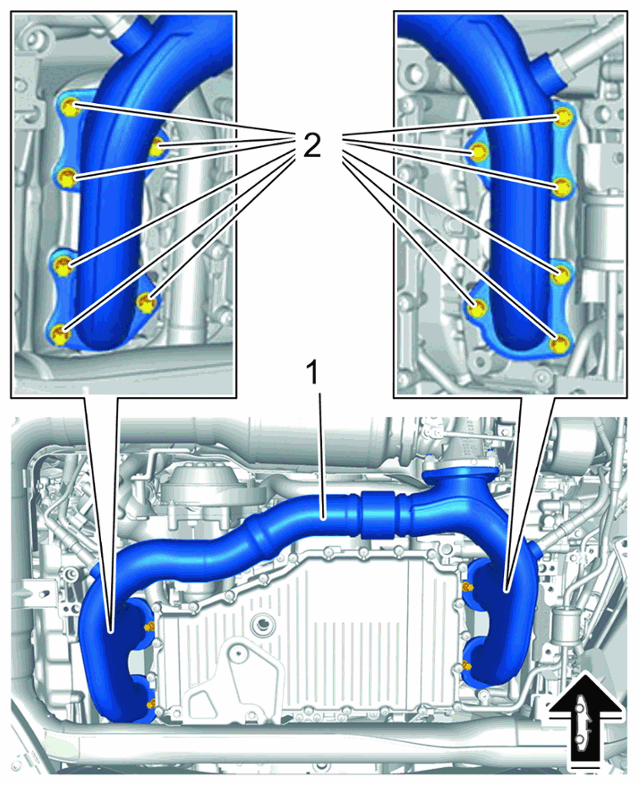

  2. Remove exhaust manifold -1  -.
    1. 2.1 Unscrew fastening screws -2  - securing exhaust manifold to cylinder head.
    2. 2.2 Remove exhaust manifold -1  - by pulling it downwards.
    G14945699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

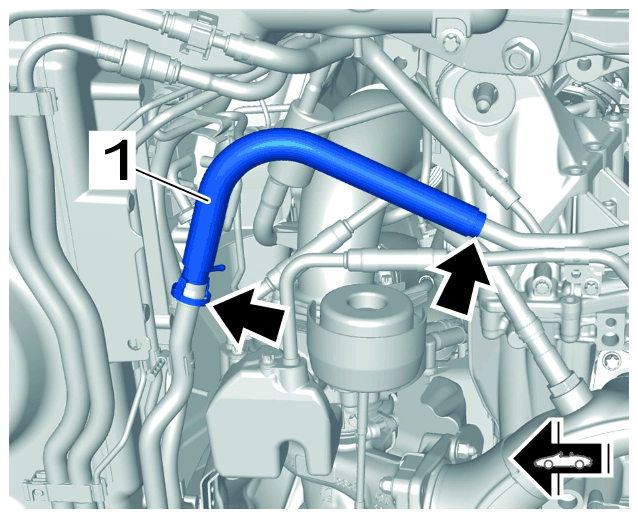

  3. Release vacuum line for brake booster -1  - on the underbody and pull it off.
    1. 3.1 Open both connection points -Arrow  - and pull off vacuum line for brake booster -1  -.
    2. 3.2 Check O-rings and replace them if necessary.
    G14945700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

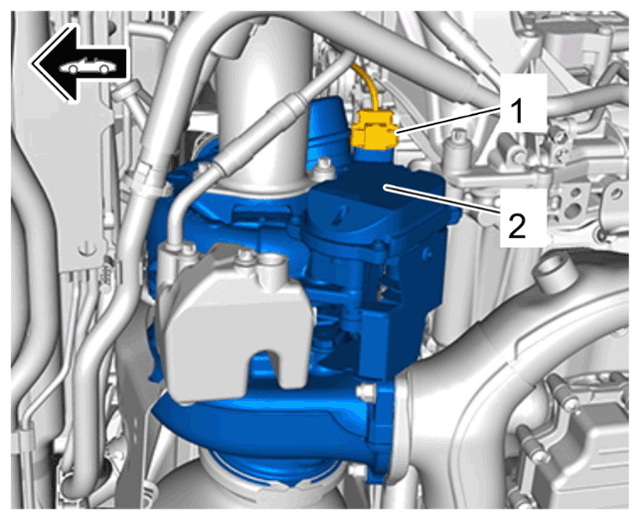

  4. Release and disconnect electric plug connection -1  - for VTG adjuster -2  -.
    G14945701Courtesy of PORSCHE CARS NORTH AMERICA, INC.

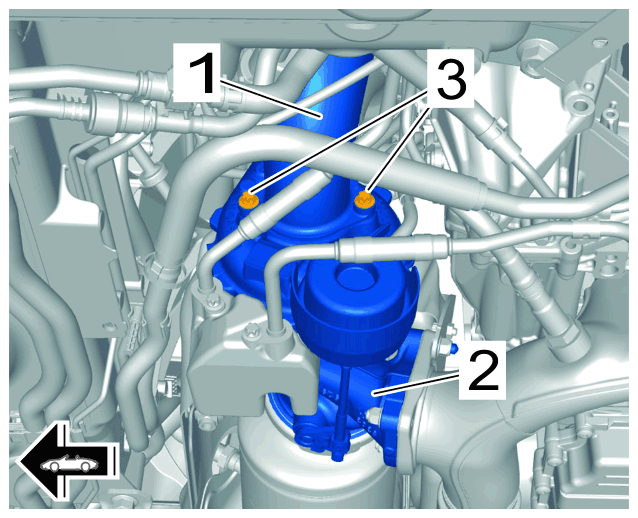

  5. Disconnect intake pipe -1  - on the turbocharger -2  -.
    1. 5.1 Unscrew and remove fastening screws -3  -.
    2. 5.2 Pull intake pipe -1  - off the turbocharger -2  -.
    3. 5.3 Replace O-ring on the intake pipe.
    G14945702Courtesy of PORSCHE CARS NORTH AMERICA, INC.

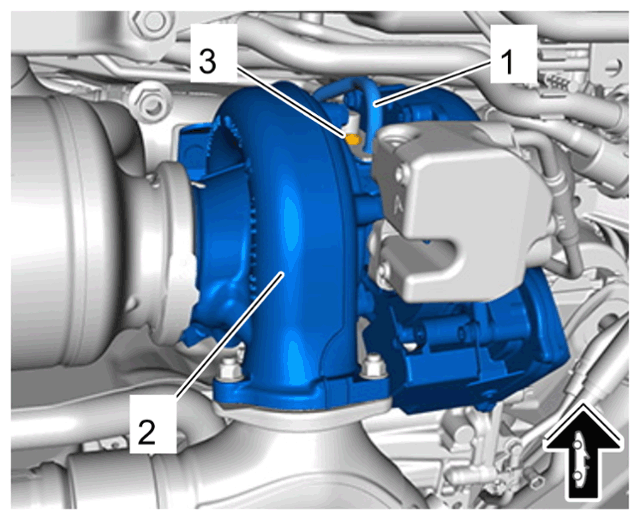

  6. Disconnect coolant line -1  - on the turbocharger -2  -.
    1. 6.1 Unscrew and remove fastening screws -3  -.
    2. 6.2 Pull off coolant line -1  - using a suitable tool.
    3. 6.3 Catch escaping coolant.
    4. 6.4 Replace all O-rings on the coolant line -1  -.
    5. 6.5 Close off opening and connection using suitable stoppers.
    G14945703Courtesy of PORSCHE CARS NORTH AMERICA, INC.

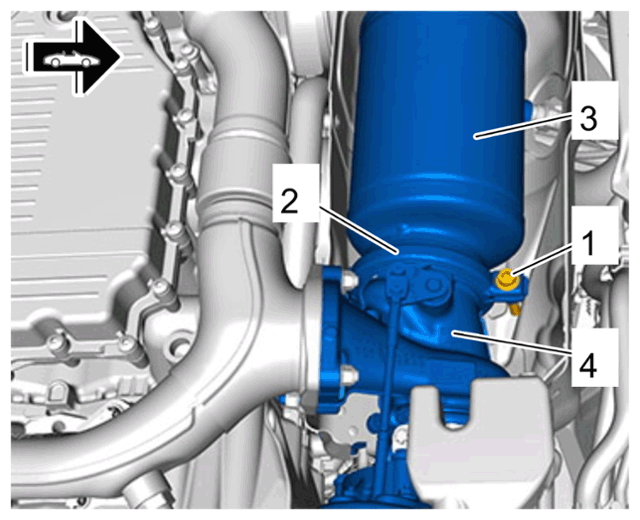

  7. Loosen V-clip securing -2  - catalytic converter -3  - to turbocharger -4  -.
    1. 7.1 Loosen fastening screw -1  - and open V-clip -2  -.
    2. 7.2 Remove turbocharger -4  - from catalytic converter -3  -.
    3. 7.3 Replace gasket.
    G14945704Courtesy of PORSCHE CARS NORTH AMERICA, INC.

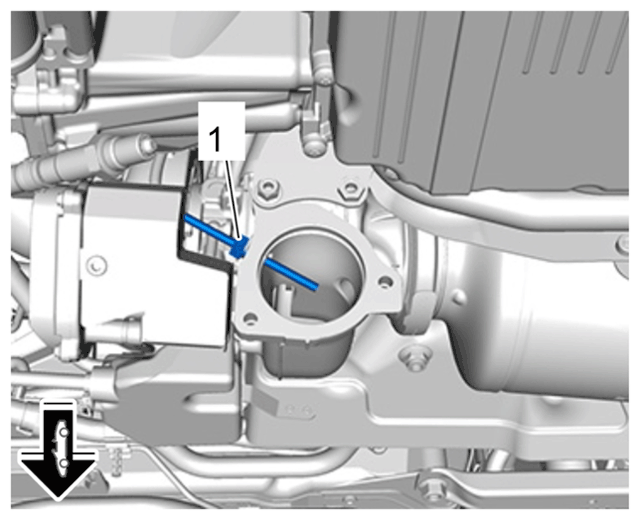

  8. Unscrew exhaust temperature sensor for turbocharger -1  -.

    Make sure not to twist the electric line. Follow the routing of the electric line and expose it if necessary.

    G14945705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Secure the turbocharger to prevent it from falling down.

    Vehicle interior

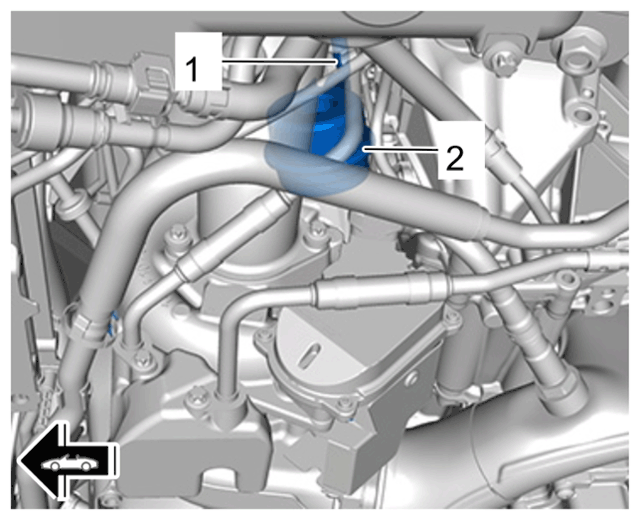

  10. Disconnect vacuum hose -1  - for the wastegate vacuum modulator (VTG) -2  -.
    G14945706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

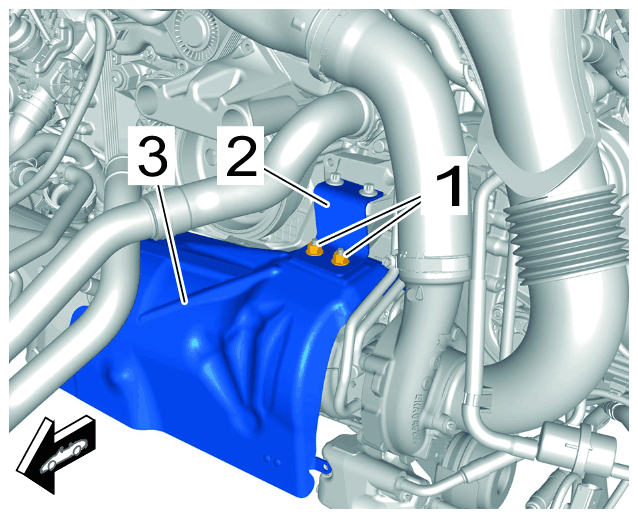

  11. Unscrew fastening nuts -1  - for heat shield -3  - at the holder -2  -.
    G14945707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

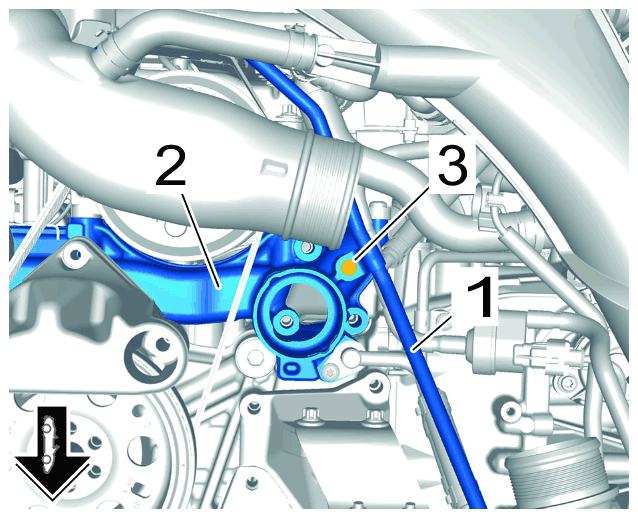

  12. Unscrew and remove fastening screws -3  -.
  13. Disconnect turbocharger coolant line -1  - from coolant distributor housing -2  -.
    G14945708Courtesy of PORSCHE CARS NORTH AMERICA, INC.

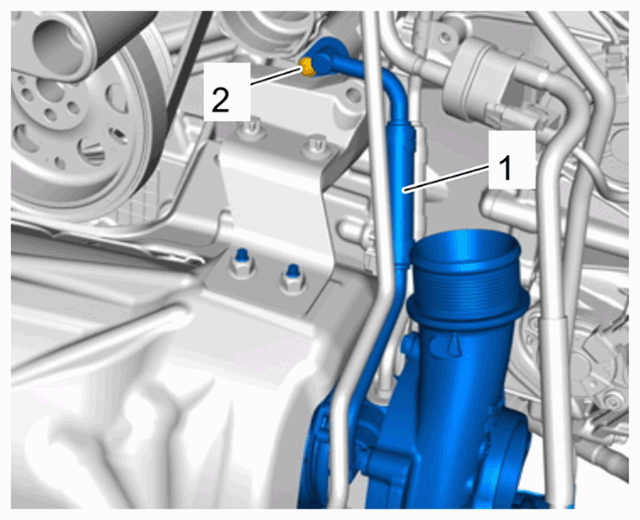

  14. Remove turbocharger coolant line -1  - from the coolant distributor housing.

    The turbocharger coolant line  -1  - is removed together with the turbocharger.

    1. 14.1 Unscrew fastening screw -2  - and pull coolant line -1  - off the coolant distributor housing.
    2. 14.2 Catch escaping coolant.
    3. 14.3 Close off openings and connections using suitable stoppers.
    G14945709Courtesy of PORSCHE CARS NORTH AMERICA, INC.

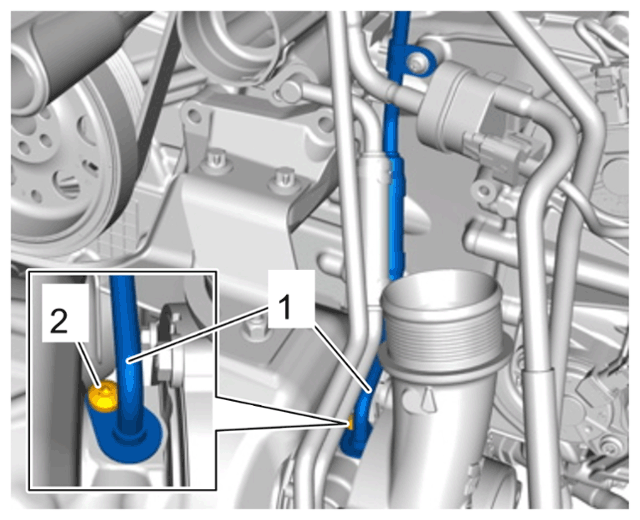

  15. Remove oil pipe -1  - from the turbocharger.
    1. 15.1 Unscrew fastening screw -2  - using > VAS 6959 - Torx screwdriver insert, T30  .
    2. 15.2 Carefully pull oil pipe -1  - off the turbocharger.

      If the oil pipe is stiff, wrap assembly tape around it at a suitable position. Carefully grip the oil pipe at the wrapped position using pliers and remove it from the turbocharger. Make sure not to damage the oil pipe  .

    3. 15.3 Collect accumulated engine oil.
    4. 15.4 Close off opening and connection using suitable stoppers.
    G14945710Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    On vehicles with Venturi turbocharger connection:

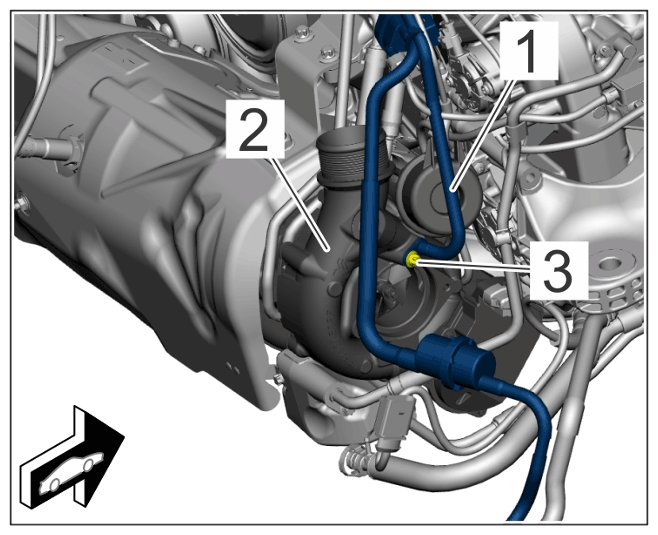

  16. Disconnect tank vent line -1  - at the turbocharger -2  -.
    1. 16.1 Undo screw -3  - and pull tank vent valve -1  - off the turbocharger -2  -.
    2. 16.2 Close off openings and connections using suitable stoppers.
    G14945711Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  17. Remove the turbocharger by pulling it downwards.
    1. 17.1 Replace gasket on the exhaust manifold flange.
    2. 17.2 Replace gasket on the catalytic converter flange.
    3. 17.3 Replace gasket on the turbocharger/exhaust manifold flange.
