Removing Coolant Temperature Sensor

WARNING: This page is about a different variant/trim than selected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation overview of coolant temperature sensor

WARNING: Caustic fluids

Danger of chemical burns
- → Wear personal protective gear.
- → Ensure that there is good ventilation.
- → Avoid contact with caustic fluid.
- → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

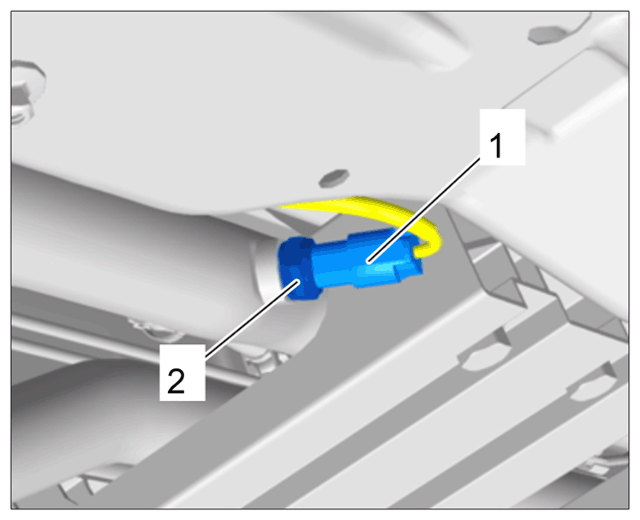

Release electric plug connection -1- on the coolant temperature sensor -2- and disconnect it.
Place a suitable coolant collection pan underneath.
Unscrew coolant temperature sensor -2- and collect emerging coolant.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

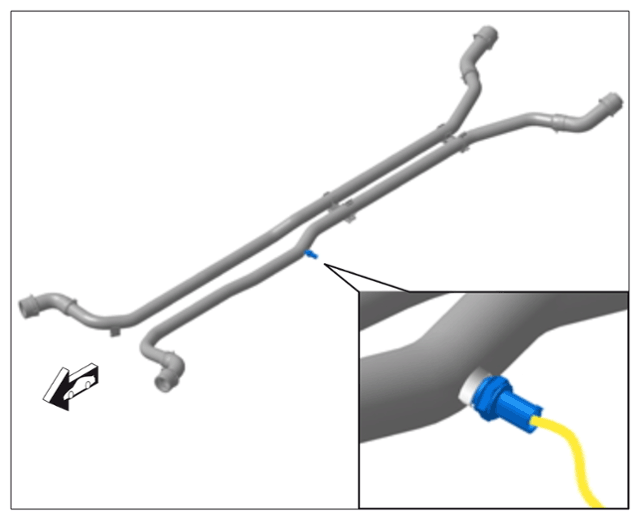

Coolant temperature sensor on coolant pipe
