Removing And Installing Change-Over Valve

WARNING: This page is about a different variant/trim than selected.
  1. Remove change-over valves -3 and 4-  .
    1. 1.1 Disconnect electric plug connections -1-  , disconnect hoses -2-  and unclip switch-over valves -3 and 4-  from the bracket.

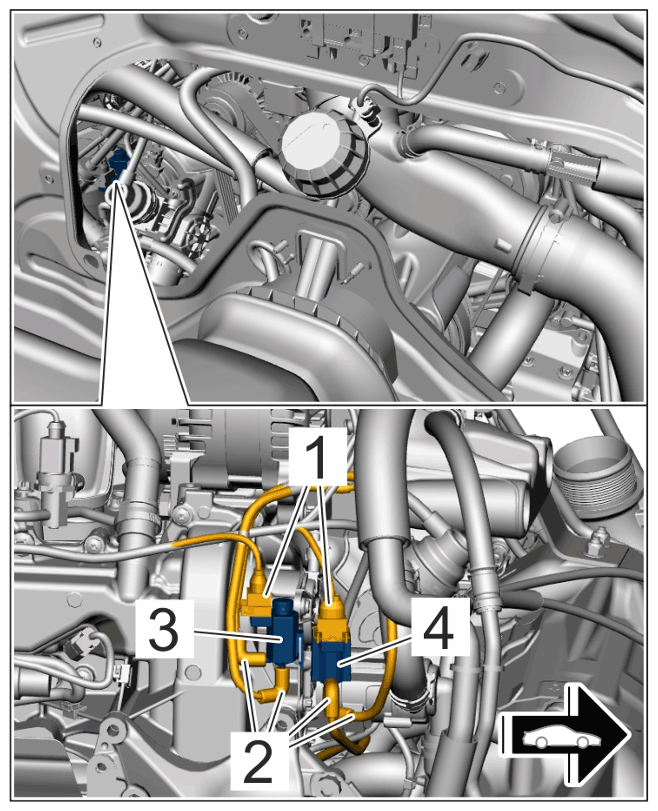

    G14944909Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Change-over valve for coolant pump and directional-control valve

    1. Electric plug connection
    2. Vacuum connections
    3. Change-over valve for thermal management directional control valve
    4. Change-over valve for coolant pump
  2. Installation is performed in reverse order.
