Removing And Installing Radiator

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding
    • → Let the fluid cool down.
    • → Wear personal protective gear.
  1. Unscrew and remove screw -3-  .
  2. Loosen condenser -1-  from the side retaining lugs -4-  .
    G14944898Courtesy of PORSCHE CARS NORTH AMERICA, INC.

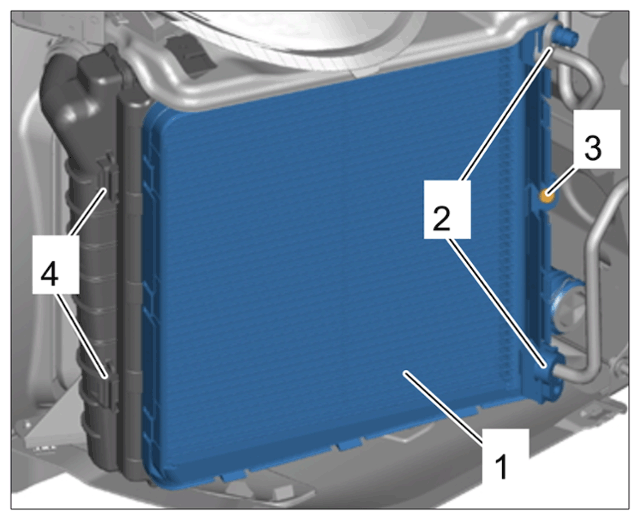

    Loosening condenser (shown on the 991)

  3. Secure the condenser -1-  with a tie-wrap -2-  to prevent it from falling down.
    G14944899Courtesy of PORSCHE CARS NORTH AMERICA, INC.

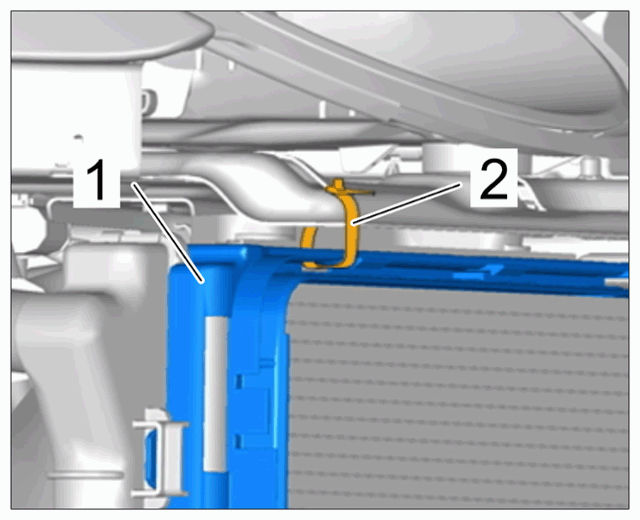

    Securing condenser

    Information

    Only for vehicles with a middle radiator.

    Information

    Collect escaping coolant in a suitable container.

    Information

    • Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
  4. Disconnect coolant hose -1-  going to the middle radiator.
  5. Check O-ring for damage and replace it if necessary.
  6. Close off coolant hose -1-  and connection piece.
    G14944900Courtesy of PORSCHE CARS NORTH AMERICA, INC.

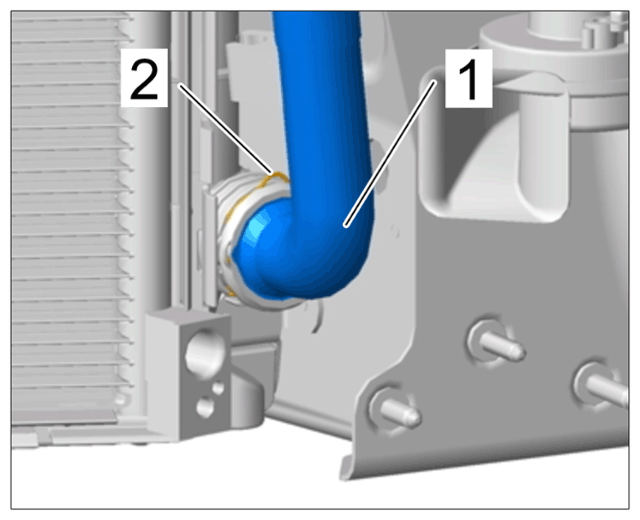

    Coolant hose to middle radiator

    Information

    Collect escaping coolant in a suitable container.

    Information

    • Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).
  7. Disconnect coolant hoses -1 and 3-  .
  8. Disconnect vent line -2-  .
  9. Check O-rings for damage and replace them if necessary.
  10. Close off coolant hoses and connection piece.
    G14944901Courtesy of PORSCHE CARS NORTH AMERICA, INC.

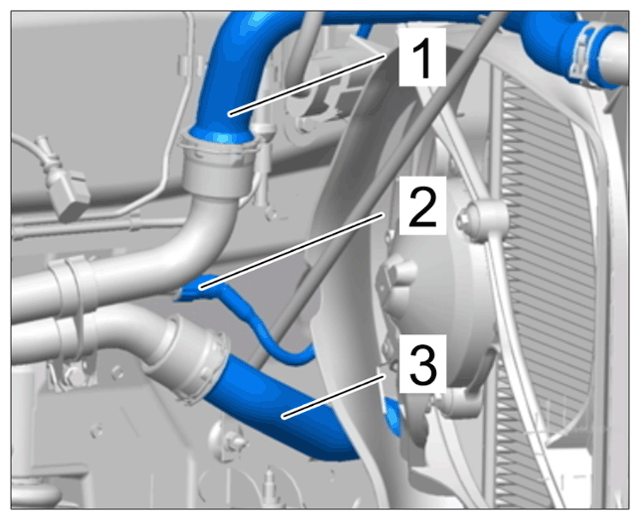

    Disconnecting coolant hoses

  11. Disconnect electric plug connection -1-  .
    G14944902Courtesy of PORSCHE CARS NORTH AMERICA, INC.

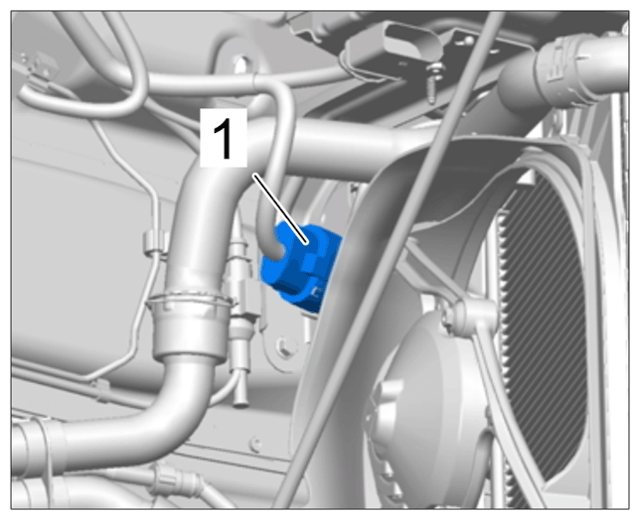

    Disconnecting electric plug connection

  12. Unscrew and remove screws -1-  at the bottom of the radiator frame.
    G14944903Courtesy of PORSCHE CARS NORTH AMERICA, INC.

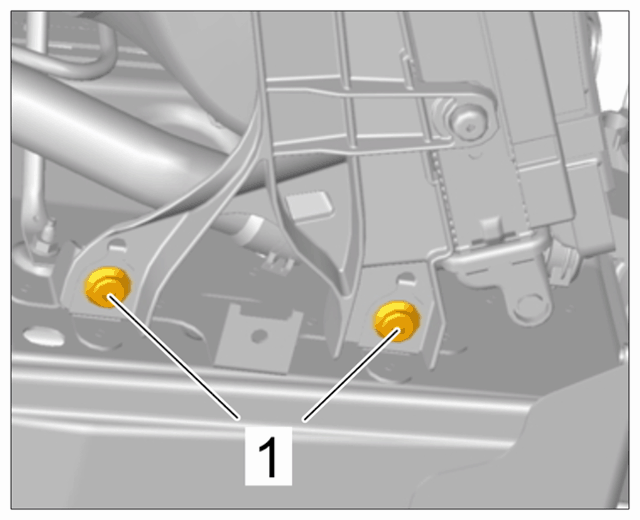

    Lower radiator support

  13. Unscrew and remove screw -1-  at the top of the radiator frame.
    G14944904Courtesy of PORSCHE CARS NORTH AMERICA, INC.

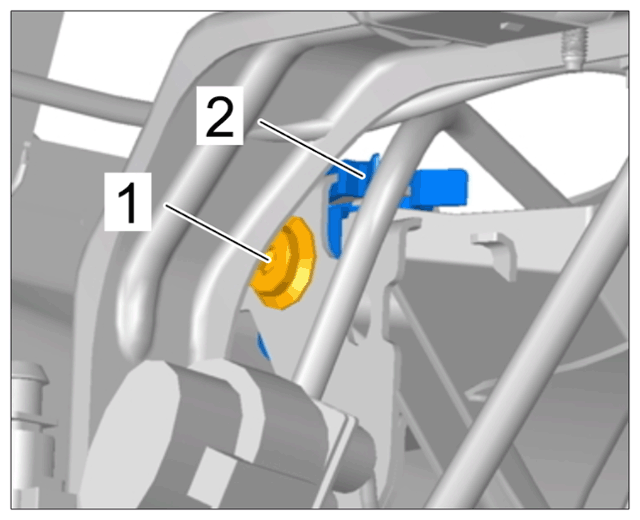

    Upper radiator support

  14. Press locking lugs on the holder -2-  together and disengage radiator.
    G14944905Courtesy of PORSCHE CARS NORTH AMERICA, INC.

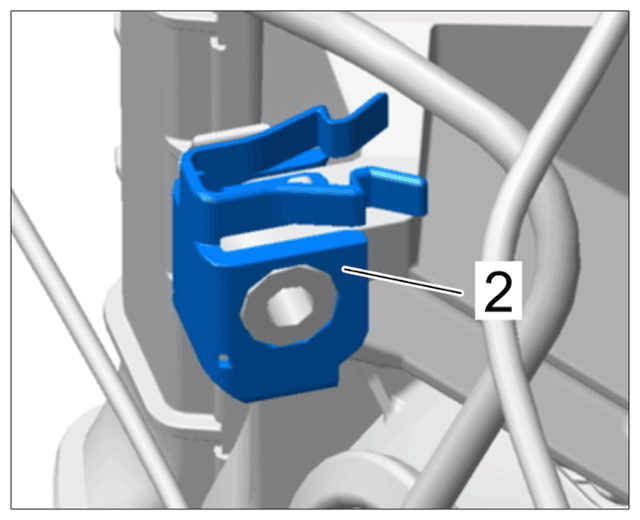

    Radiator holder

  15. Remove radiator.
  16. Installation is performed in reverse order. Pay particular attention to the following:

    Tightening torque for screw at top and bottom of radiator frame: > Tightening torque 23 Nm (17 ftlb.)  > Tightening torque 23 Nm (17 ftlb.)
