Preliminary Work

1. Remove fan frame in engine compartment.

   > 190819 REMOVING AND INSTALLING ELECTRIC FAN IN ENGINE COMPARTMENT  - article on "Removing".

Removing and installing low-temperature cooler in engine compartment

Information

Shown on driver's side; the steps are identical for the passenger's side.

Information

Collect escaping coolant in a suitable container.

Information

• Coat O-rings, hoses and lines in the cooling system with Kluberplus Gel (Part No. 000.043.205.93).

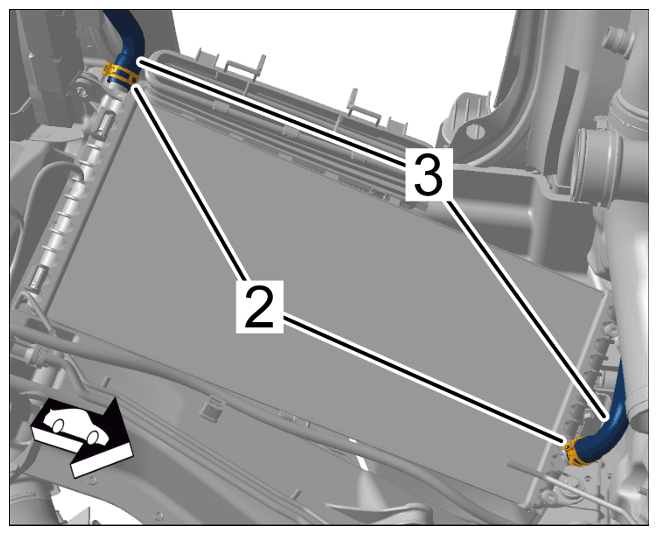

1. Open clamps -2-  and disconnect coolant hoses -3-  from low-temperature cooler.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Disconnecting coolant hoses

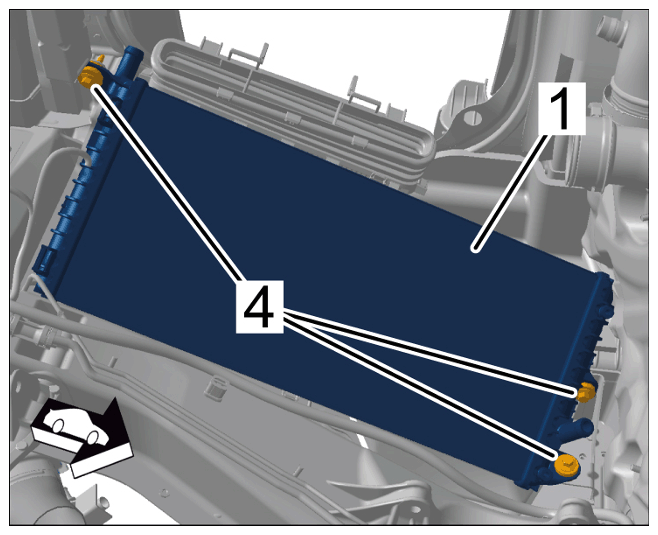

2. Unscrew screws -4-  and remove low-temperature cooler -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing low-temperature cooler

3. Installation is performed in reverse order.
