Removing Directional-Control Valve For Thermal Management

WARNING: This page is about a different variant/trim than selected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

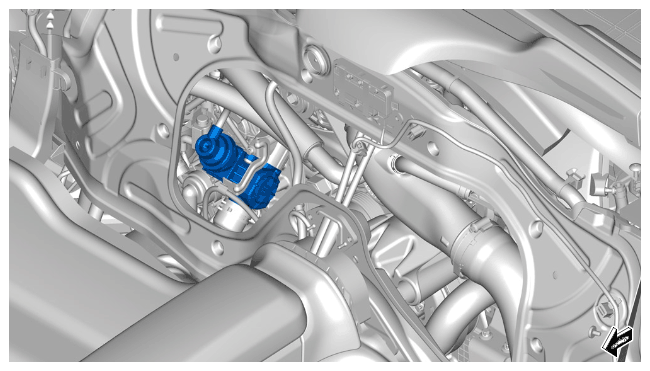

Installation position of directional-control valve for thermal management

WARNING: Caustic fluids

Danger of chemical burns
- → Wear personal protective gear.
- → Ensure that there is good ventilation.
- → Avoid contact with caustic fluid.
- → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

Remove holder -2- .
1. 1.1 Unscrew and remove fastening screw -1- .
2. 1.2 Move holder -2- with electric line -3- aside.
Pull coolant hose -5- off the directional-control valve.
1. 2.1 Loosen spring band clamp -4- on the coolant hose -5- .
2. 2.2 Pull off coolant hose -5- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing holder and coolant hose
Remove directional-control valve -1- .
1. 3.1 Pull vacuum line -2- off the directional-control valve -1- .
2. 3.2 Unscrew fastening screws -3- .
3. 3.3 Remove directional-control valve -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

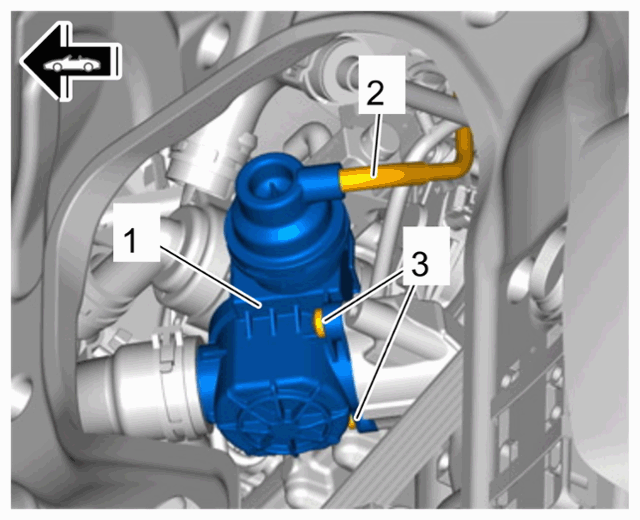

Directional-control valve
