Installing Coolant Pipe

Information

• Replace O-rings on the cooling system.
• Clean plug connection and coolant hoses before assembly.
• Remove stoppers before fitting the coolant lines and hoses.

1. Coat new O-rings with the prescribed lubricant.
2. Install coolant pipe with new O-rings.
   1. 2.1 Fit coolant pipe -1-  using screws -2 and 3-  .
   2. 2.2 Tighten screws -2-  .

      > Tightening torque 13 Nm (9.5 ftlb.)

   3. 2.3 Tighten screw -3-  .

      > Tightening torque 13 Nm (9.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

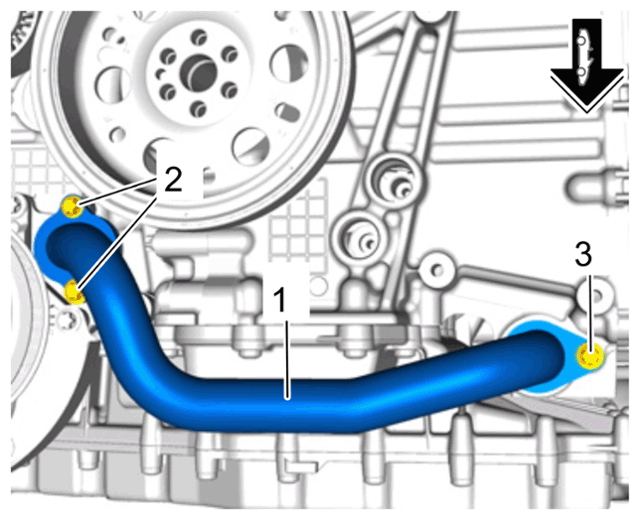

   Coolant pipe on coolant pump

3. Install heat shield -2-  on the coolant pump.
   1. 3.1 Fit and tighten screws -1-  .

      > Tightening torque 10 Nm (7.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

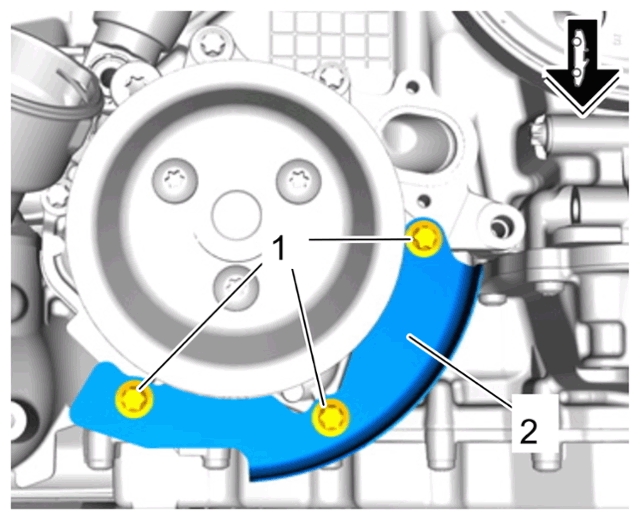

   Heat shield on coolant pump
