Removing Coolant Regulator Housing

WARNING: This page is about a different variant/trim than selected.

WARNING: Caustic fluids

Danger of chemical burns
- → Wear personal protective gear.
- → Ensure that there is good ventilation.
- → Avoid contact with caustic fluid.
- → If you do come into contact, wash off immediately with plenty of warm water and contact a doctor if necessary.

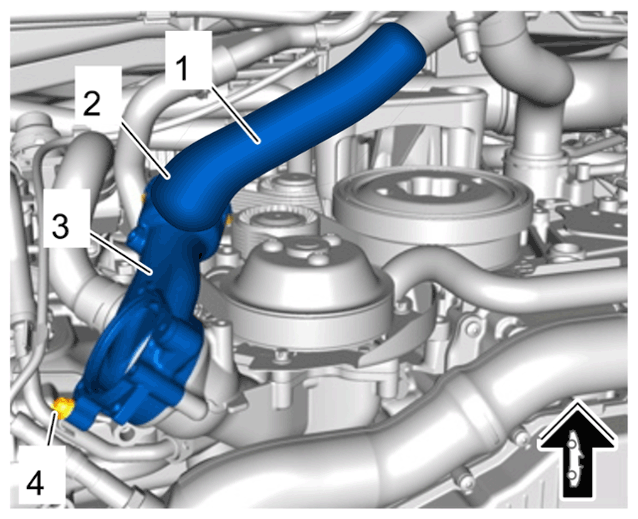

Loosen spring clamp -2- and pull coolant hose -1- out of the coolant regulator housing -3- .
Re-fit spring clamp -2- .
Unscrew fastening screw -4- on the coolant regulator housing -3- .
Remove coolant regulator housing -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant regulator housing
